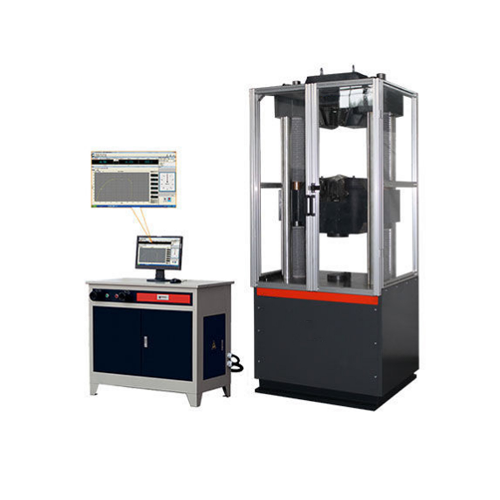

Samyon SEW-2000D 液压万能试验机 (2000 kN)

- Application:

This product is mainly used for the tensile test of metal materials,testing the tensile strength,yield strength, stipulated plastic extension strength, percentage elongation after fracture,elasticity modulus and other mechanical performance index.

Control method of rate testing: manual control

- Parameter:

Maximum Testing Force: 2000 kN

Class of Testing Machine: Class 1

Efficient Measure Range: 10%-100%FS

Relative Accuracy of Value Display: ±1%

Discrimination of Testing Force: 0.005

Discrimination of Displacement: 0.001

Tensile Volume(mm): 1300

Compression Volume (mm): 1000

Column Space(mm): 745

Round Specimen Clamping Range(mm): Φ20-Φ65

Flat Specimen Clamping Thickness(mm): 0-50

Max. Width of Flat Specimen Clamping (mm): 140

Pressure Plate Dimension(mm): Φ300

Overall Dimension (L*W*H)(mm): 1200*800*3300

Oil Source Console Dimension(mm): 1150*800*1000

Total Motor Power(kW): 4

Total Weight(kg): 9000
