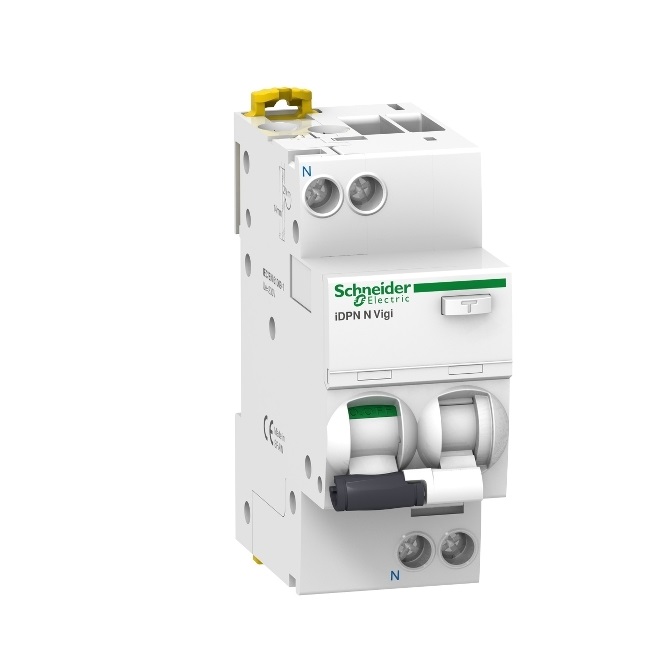

SCHNEIDER A9D31620 带过电流保护的剩余电流断路器
制造商: SCHNEIDER Model: A9D31620 - 报价要求
- 联系
Range: Acti 9
Product or component type: Residual current breaker with overcurrent protection (RCBO)
Device short name: IDPN N Vigi
Curve code: C
Earth-leakage protection class: Type AC
Poles description: 1P + N
[In] rated current: 20A
Breaking capacity: 6000A
Earth-leakage sensitivity: 30mA
[Ue] rated operational voltage: 220...240 V AC 50 Hz
Dimensions (HxWxD): 85x36x73mm
IP degree of protection: IP20 conforming to IEC 60529
Ambient air temperature for operation: -5-60°C
Ambient air temperature for storage: -40-85°C
Standards: EN/IEC 61009-2-1
Weight: 125g
