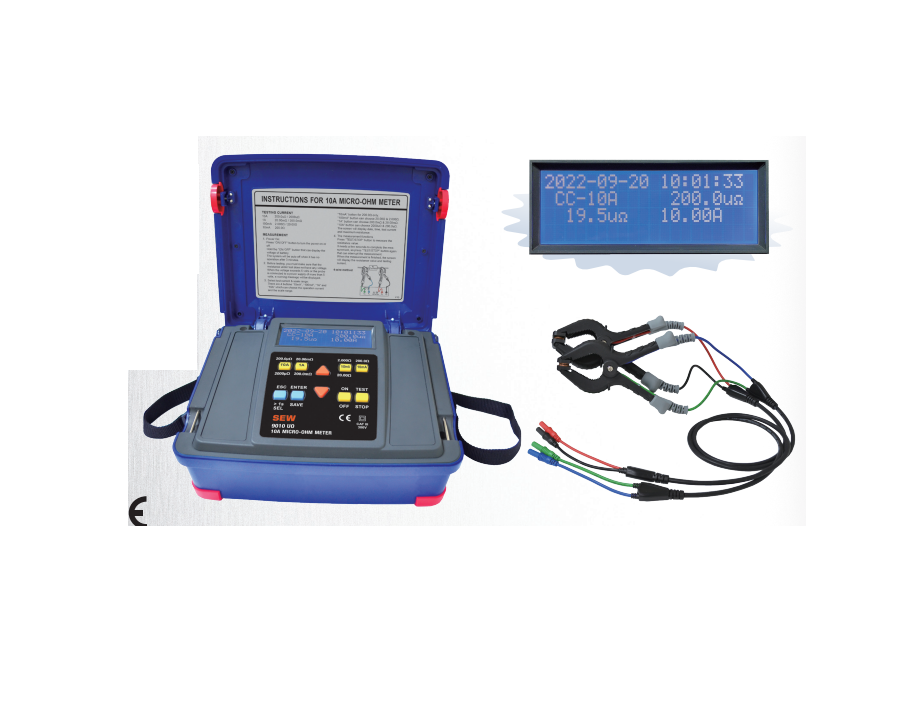

SEW 9010 UO 10A 微欧姆计 (2.000Ω / 1μΩ; ± (2% + 8 dgt))

4-wire method measurement

Measuring ranges / resolution: 2.000Ω /1μΩ

Accuracy: 200.0μΩ~2000μΩ: ±(2% + 8 dgt); 20.00mΩ~200.0Ω: ±(1% + 4 dgt)

Testing current: 10A: 200.0μΩ / 2000μΩ

1A: 20.00mΩ / 200.0mΩ

100mA: 2.000Ω / 20.00Ω

10mA: 200.0Ω

General

Operating temperature: 0~40°C

Operating humidity: 80% RH

Dimensions: 322(L) × 260(W) × 135(D)mm

Weight (battery included): Approx. 3219 g

Power source: Rechargeable battery DC14.8V 5200mAh 76.96Wh

Safety standard: IEC/EN 61010-1 CAT III 300V EN 61326-1

Accessories: Instruction manual; Test leads; Charger; Shoulder belt
