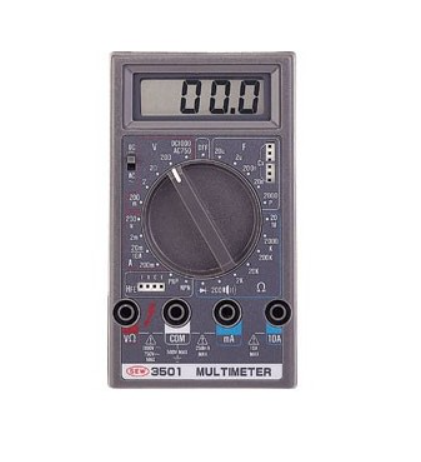

SEW ST-3501 Digital Multimeter

DC voltage (Input impedance: 10MΩ)

  Measuring range: 200mV, 2V, 20V, 200V, 1000V

  Division: 100nV, 1mV, 10mV, 100mV, 1V

  Accuracy grade ± (0.5% rdg + 1dgt)

AC voltage (Input impedance: 10MΩ)

  Measuring range: 200mV, 2V, 20V, 200V, 1000V

  Division: 100μV, 1mV, 10mV, 100mV, 1V

  Accuracy class: 45 Hz to 400 Hz : ± (1.2% rdg + 4dgt)

DC current (Fuse overload protection 0.8A (250V) )

  Measuring range: 200μA, 2mA, 20mA, 200mA, 10A

  Division: 100nA, 1μA, 10μA, 100μA, 10mA

  Accuracy class: ± (1.0% rdg + 1dgt), At 10A ± (2.0% rdg + 3dgt)

AC current (Fuse overload protection 0.8A (250V) )

  Measuring range: 200μA, 2mA, 20mA, 200mA, 10A

  Division: 100nA, 1μA, 10μA, 100μA, 10mA

  Accuracy class: ± (1.2% rdg + 1dgt), At 10A ± (2.0% rdg + 3dgt)

Capacitance (Fuse overload protection 0.8A (250V) )

  Measuring range: 2000pF, 20nF, 200nF, 2uF, 20uF

  Division: 1pF, 10pF, 100pF, 1nF, 10nF

  Accuracy grade: ± (3% rdg + 10dgt)

Measure Resistance:

  Measuring range: 200Ω, 2kΩ, 20kΩ, 200kΩ, 2MΩ, 20M

   Division: 0.1Ω, 1Ω, 10Ωm, 100Ω, 1kΩ, 10kΩ

  Accuracy class: at 200Ω ± (1.0% rdg + 3dgt), ± (0.8% rdg + 1dgt), At 20MΩ± (3.0% rdg + 1dgt)
