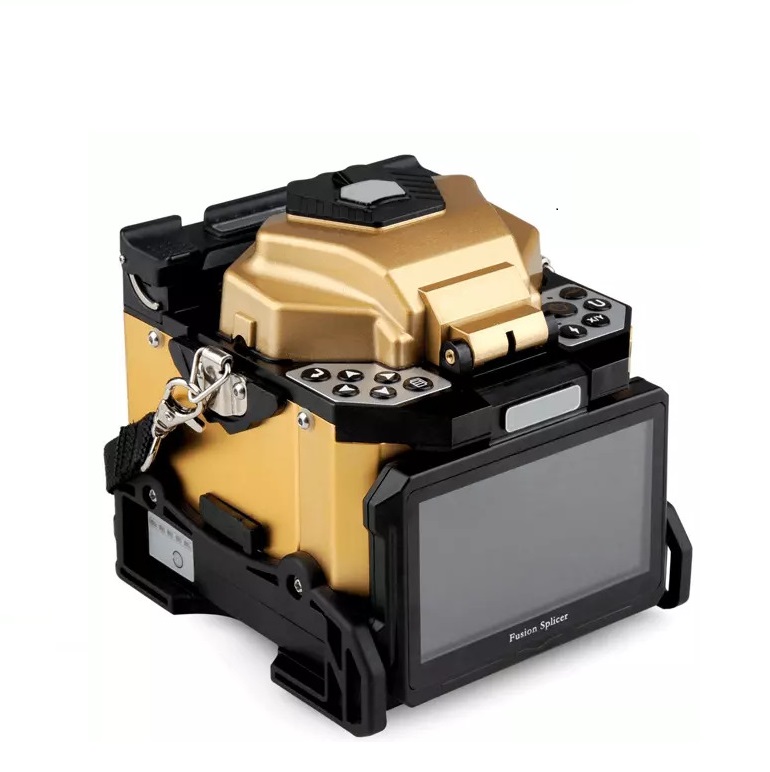

SKYCOM T-308X Fusion Splicer (Splicing time 8s, heating 18s)

Handheld tye for MetroAN network

Applicable Fibers: SM, MM, NZ-DS, EDF, Pigtail, FTTH drop cable SC/LC/FC connector (optional function)

Average Splice Loss: 0.02dB(SM), 0.01dB(MM), 0.04dB(NZDS), 0.04dB(EDF)

Return Loss: ≥60dB

Quick splicing time: 8 seconds

Quick heating time: 18 seconds

Operating Language: Chinese, English, French, Portuguese, Spanish, Russian

Operating Conditions: -10~+50°C(operation temperature),0~95% (humidity), 0~5000m(altitude)

Monitor: Dual cameras, 90︒bi-dirctional view ,4.3 inches high resolution colorful LCD display

Fiber Image: X or Y Separately 520 times or Simultaneously 220 times

Estimated Splice: Available

Cleaving angle: Available

Automatic setting: Automatic camera and motor forward adjustment

Power Supply: Rechargeable and replaceable Li-ion battery, 180 times operation for 1 charge

Dimensions: 120(W)*120(D)*130(H)mm

Weight: 1.29kg(without battery pack)
