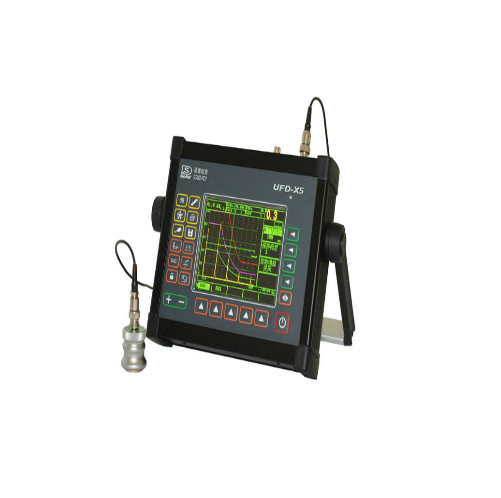

SOLID NDT A1M100 General Ultrasonic Flaw Detector (1.0~12000mm)

Gauge type: UFD-X5

Measuring Range: 1.0~12000mm

Resolution: 0.01mm(<100mm), 1mm(>100mm)

Velocity: 500~20000m/s, 20fixed velocities

Delay: -20~3400us /resolution : 0.1us

Probe Delay: 0~99us /resolution: 0.01us

Auto Calibration: Velocity Calibration &Probe Delay Calibration

Linear Error:

+ Horizontal errors: ≤0.1%

+ Vertical error: ≤3%

Dynamic Range: ≥36dB

Sensitivity: ≥64dB 200mmΦ2 flat-bottomed hole

Dimension(mm): 240x180x50mm

Weight: 1.9Kg (induding battery pack)

Working Environment:

+ Temperature: -20°C~70°C

+ Humidity: 5%~90%

Accessories:

+ Main engine: 1

+ Straight / angle probe: 1

+ Probe line: 1

+ Chargers: 1

+ Battery:
