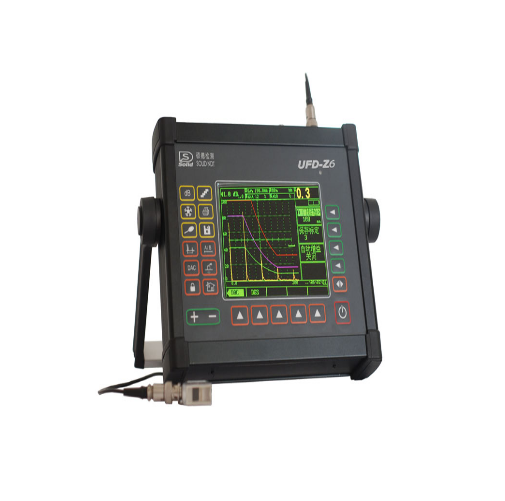

SOLID NDT A4M100 高级超音波探伤仪 (1.0~15000mm)

Gauge type: UFD-Z6

Measuring Range: 1.0~15000mm

Resolution: 0.01mm(<100mm), 1mm(>100mm)

Velocity: 500~20000m/s, 20 fixed velocities

Delay: -20~3400us /resolution : 0.1us

Probe Delay: 0~99us /resolution: 0.01us

Auto Calibration: Velocity Calibration &Probe Delay Calibration

Linear Error:

+ Horizontal errors: ≤0.1%

+ Vertical error: ≤3%

Dynamic Range: ≥36dB

Sensitivity: ≥64dB 200mmΦ2 flat-bottomed hole

Dimension(mm): 240x180x50mm

Weight: 1.9Kg (induding battery pack)

Working Environment:

+ Temperature: 0°C~60°C

+ Humidity: 20%~90%

Standard:

+ Main engine: 1

+ Straight / angle probe: 2

+ Probe cable: 1

+ Power adaptor: 1

+ Chargers: 1

+ Battery: 1

+ Instruction: 1

+ Box: 1

+ Coupling paste: 1 bottle

Optional:

+ Printer: TP serial printer 3 data report: screen shot wave thickness value

+ Communication: USB
