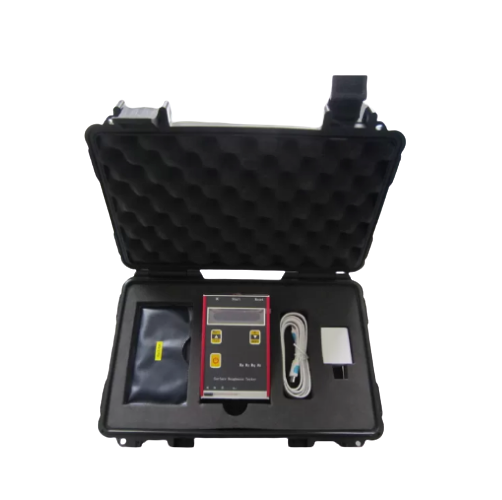

SOLID NDT ST110 Portable surface roughness tester (0.05-15.0 um, 0.1-50.0 um)

Tester Type: SR110

Testing parameters: Ra, Rz, Rq, Rt

Measuring range(um):

+ Ra, Rq:0.05-15.0

+ Rz, Rt:0.1-50.0

Sample length(mm): 0.25, 0.80, 2.50

Evaluation length(mm): 1.25, 4.0, 5.0

Stroke length (mm): 6

Value accuracy: 0.01

Variability: ±(7-10)%

Variation of indication: <12%

Power supply: Rechargeable lithium battery

Stylus static force: <0.016N

Range of change: <800N/m

Working temperature: -20°C-40°C

Relative humidity: <90%

Weight of host: 200g

Dimension: 106*70*24mm
