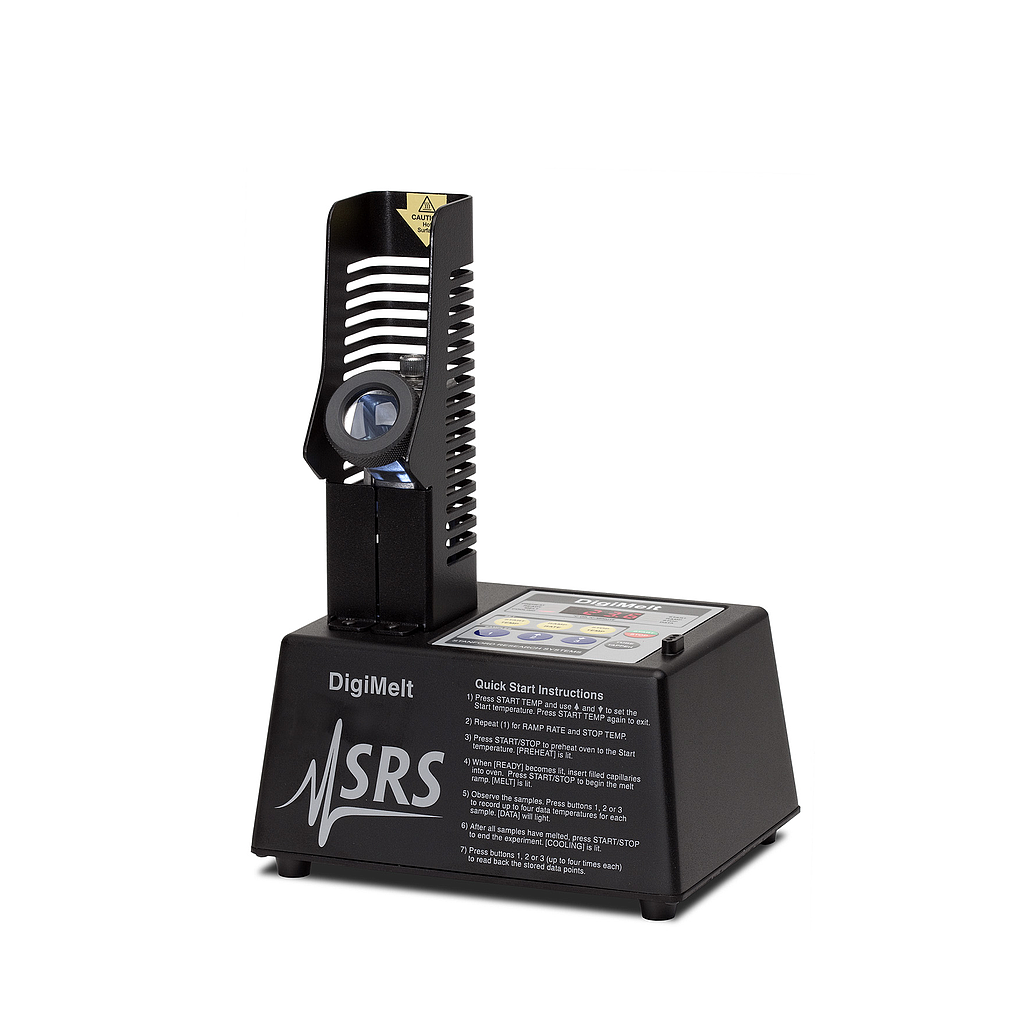

Stanford MPA161 数字熔点测定装置 (50 °C - 260 °C)

Display:

Type: 4 digit LED

Readout: Start, stop or ramp rate, oven temperature, and stored measurement data

Temperature:

Resolution: 0.1 °C

Accuracy:

±(0.45+0.0045T) where T is temperature in Centigrade

Typical: ±0.6 °C (<200 °C), ±1.0 °C (≥200 °C)

Reproducibility: 0.2 °C

Oven:

Range: 50 °C to 260 °C

Ramp rate: 0.5, 1.0, 2.0, 5.0, 10, 20 °C per minute

Heat-up time (typ.): 2.5 minutes to 100 °C, 6.5 minutes to 250 °C

Thermometer: Built in Pt RTD

Temperature control: Closed-loop PID

Safety shut off: Automatic after 30 minutes idle

Capillaries:

Dimensions: 1.4 mm to 1.8 mm outside dia., 100 mm length

Capacity: Up to 3 tubes

Fill height: 2 mm to 3 mm

Sample packing: Automatic (tube tapper)

General:

Power:  200 to 250 VAC, 50 to 60 Hz, 1/2 A, 75 W nominal

Environment: 0 °C to 30 °C, non-condensing

Humidity: <90%

Weight: 2 lbs.

Dimensions: 6.5"× 9.5"× 5.25" (WHD)
