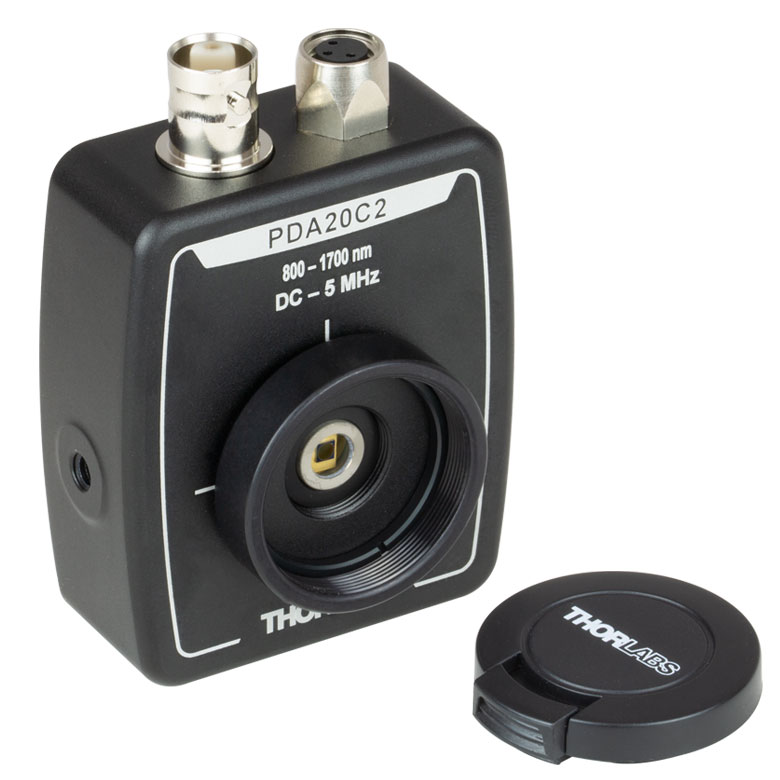

THORLABS PDA20C2 InGaAs放大光电探测器 (800 - 1700 nm, Fixed Gain, 8-32 / M4 Mounting Holes)
制造商: THORLABS Model: PDA20C2 - 报价要求
- 报价要求
- 联系
Wavelength Range: 800 - 1700 nm
Bandwidth Range: DC - 5 MHz
Rise Time: 70 ns
Gain Hi-Z Load: 500 kV/A
Gain 50 Ω Load: 175 kV/A
NEP: 22 pW/Hz^1/2
Active Area(c): 3.14 mm^2 (Ø2.0 mm)
Operating Temperature Range: 10 to 50°C
Power Supply Included: Yes
(c) View an image of the detector element in manual.
(d) The detector active area surface is flush with the front of the housing.
(e) The time required for the signal to rise from 10% to 90% of the maximum value.
(f) Femtosecond Pulsed Input
(g) CW Input
Details
