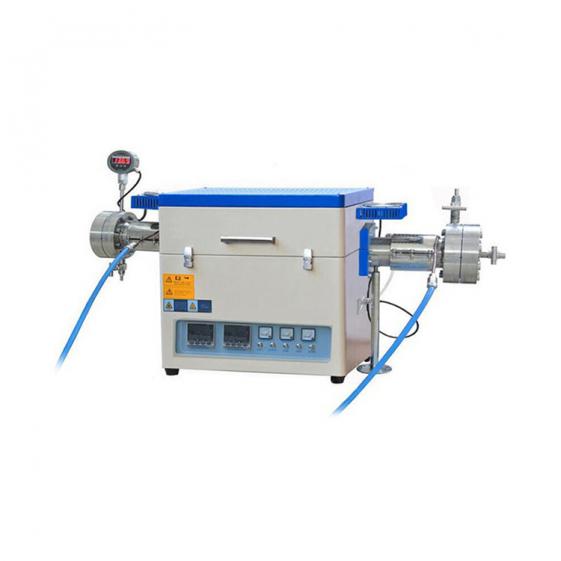

TOB TOB-DSP-1100℃-HPII 双温区高温高压炉 (0-1100℃,20Mpa)

  • 制造商:TOB
    Model: TOB-DSP-1100℃-HPII
    来源: China
    保障: 12 Month
    • 报价要求 Request a Quotation
  • 联系
    • 加入购物车
    • 立即购买
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




Power: 3.5  KW

Furnace tube size(mm): Material: nickel-based alloy steels Dia 85(ID50) X1000

Dimension: 580X420X565

Power supply voltage: 220V

Phase number: Single-phase

Temperature control mode

1.Yudian temperature control: 30 sections can only use PID temperature regulation.

2.FP93 temperature control (from Japan)

Control accuracy: +/- 1 ℃

Water-cooled

  When furnace heating needs water-cooled,

Required water flow ≥ 35L / min, water temperature <30ºC;

water pressure> 25 PSI.

Trigger: Phase-shift trigger

SCR: 106 / 16E Germany Simon Kang

The 1.2 temperature zone max temperature

20Mpa  temperature ≤800 ° C

12Mpa  temperature ≤900 ° C

6Mpa  temperatures ≤1000 ° C

4Mpa  temperatures ≤1100 ° C

The 1.2 rated temperature

  1100 ℃ ≤ 1h

1000 degrees can work long time

Heating rate: ≤10 ℃/ Min (Available upon request modification)

Thermocouple Type: K type

The first temperature zone heating section length: 205mm

The second temperature zone heating section length: 205mm

Vacuum degree (Optional)

1.General vacuum and drive gas out by:TW-1.5A

2.2XZ-2 Vacuum degree pumps can be able to get around 10Pa

3.TOB-DSP-VS 0.1vacuum system can pumped 0.1Pa

4、TOB-DSP-VS high vacuum system enables vacuum degree pumped 10-3 Pa.

Pressure display: Digital pressure gauge, and with 4-20ml Model Output

Vacuum flange

CF flange

Oxygen-free copper gasket  seal

Surrounding surface temperature: ≤45℃

Security System: overcurrent protection.

Cap protection system: when the lid open relay will automatically cut off the main power supply, effectively ensure the safety of users
