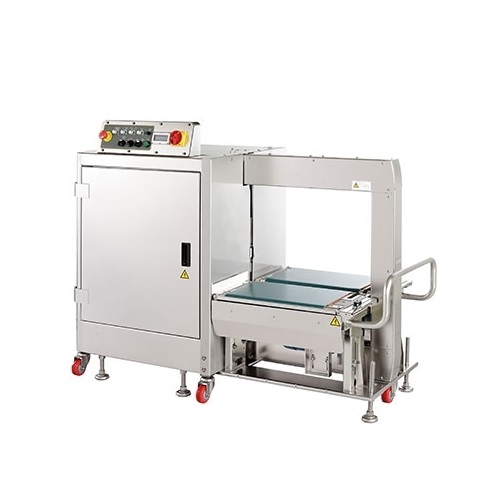

Transpak TP-702YAM Mercury Transit 全自动捆扎机 (5-12mm, 1-55kg)

Capacity: Up to 35 cycles/minute

Strap Width: 5mm, 6 mm, 9 mm, or 12 mm

Tension Range

1 - 32 kg (for 5 mm, 6 mm, 9 mm)

1 - 55 kg (for 12 mm)

Weight: 327 kg

Electrical Requirements: 110V, 220V, 230V, 240V 50/60Hz 1PH

Options

Light tower with low strap sensor

Small Package

Siemens PLC

Energy saving transit with auto sleep mode

Side pusher

Dual press bar

Details

Video

Watch as reference: TP-201Y & TP-702Y Series Side-Seal Strapping Machines - TRANSPAK

Datasheet

Mercury Transit TP-702YAM is a wash-down fully automatic side-seal strapping machine. With stainless steel cabinet (SUS 304) and rust resistant or corrosion retardant components, TP-702YAM provides maximum protections for the applications in the harsh working environment like seafood, meat, and poultry processing industries.

Features

Robust and compact strapping head

High strapping speed up to 35 packages per minute

Water proof design with internal heating device

Control panel with LCD display

Free access to strap guides (patents registered)

Downward tension force

IP54 rated protection of electric control unit

Up and down stream interlock

Inner strap dispenser design

Adjustable table height from 445 mm to 645 mm
