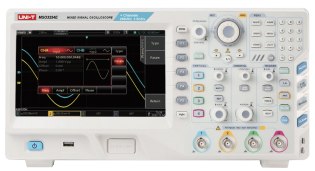

UNI-T MSO3352E 数字示波器 (350MHz, 2.5GSa/s, 70Mpts, 2+16CH MSO)

Bandwidth: 350MHz

Channels: 2+16digital

Sampling rate (analog): 2.5GSa/s (Single channel), 1.25GSa/s (Dual channels)

Sampling rate (digital): 1.25GSa/s

Max. memory depth: 70Mpts

Waveform capture rate: 200,000wfms/s

Time base scale (s/div): 1ns/div~40s/div (Real-time sampling rate, memory depth display )

Time base scale (digital): 1ns/div~40s/div (Step by 1-2-4 stall)

Input impedance: (± 1%@1MΩ, ±1.5%@50Ω) ||(18 pF± 3 pF)

Input impedance (digital): (101kΩ±1%) II (9pF±1pF)

Vertical scale (V/div): 1mV/div~10 V/div (1 MΩ); 1mV/div~1V/div (50Ω)

DC gain accuracy: ≤±3%

Waveform record: 100,000 frames

Trigger types: 18

Mathematical operations: A+B, A-B, A×B, A/B, FFT, editable advanced and logical operations digital filtering

Auto measurements: 34

Number of measurements: Display 5 measurements at the same time

Measurement statistics: Average, Max, Min, standard deviation, number of measurements

Frequency counter: 7 bits

Standard interfaces: USB Host, USB Device, LAN, EXT Trig, AUX Out (Trig Out, Pass/Fail), AWG(Only MSO3000E), UT-M12(Optional), VGA

Power: 100V~240V AC, 50Hz/60Hz

Display: 8 inch TFT LCD, WVGA (800x480)

Product net weight: 4.2kg

Product size (W×H×D): 370mm x 195mm x 125mm
