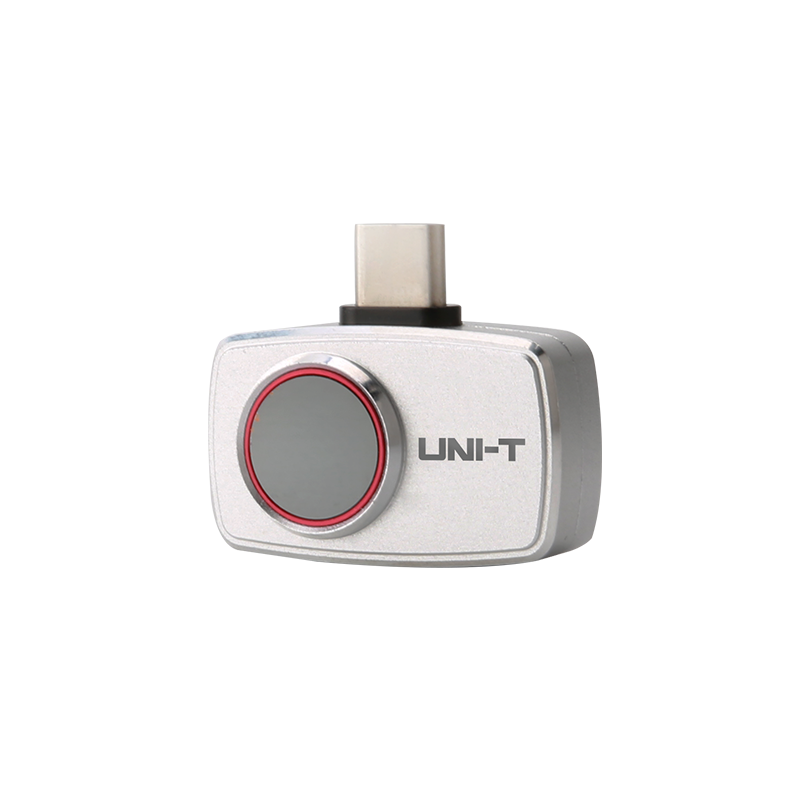

UNI-T UTi720M Smartphone Thermal Imager (256×192 px, -20℃ ~ 200℃)

IR resolution (Pixels): 256×192

Field of view(FOV): 56.0°×42.2°

Thermal sensitivity(NETD): ≤50mK  @25℃

Spatial resolution(IFOV): 3.8mrad

Frame rate: ≤25Hz

Focus: Focus free

Lens focal length: 3.2mm

Temperature measurement range:  -20℃ ~ 200℃

Accuracy: ±2° or ±2% whichever is greater

Emissivity: 0.01~1.00 adjustable (0.95 default)

Functions

Color palettes: 7 (White hot, Lava, Ironbow,Black hot, Red hot, Rainbow, Rainbow HC)

Image modes: Thermal,Fusion,PIP

On screen analyzer: 3 Points/3 Lines/3 Rectangles

Hi/Lo temperature alarm: √

Video recording: √

General Characteristics

USB: Type-C

Drop proof: 1m

Image/Video storage format: JPEG, MP4

Certificates: CE,UKCA,FCC,RoHS

Languages: ZH, EN, FR, DE, IT, ES, SV

Product net weight: 12g

Product size: 33mm×28.2mm×11.3mm

Packing Details

Standard accessories: USB cable, English manual, Documents download operation guide card

Standard individual packing: Gift box

Standard Qty per carton: 20pcs

Standard carton size: 290mm×265mm×325mm

Standard carton G.W.: 4.4kg
