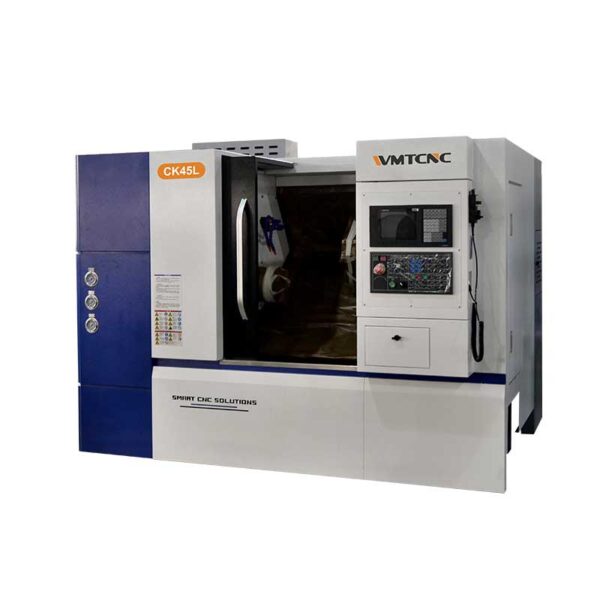

WMT CNC CK45L Slant Bed CNC Lathe (450mm)

Chuck size: 8inch

Max. swing over bed: 450mm

Max. length of workpiece: 450/500(optional)mm

Max. swing over cross slide: 220mm

Spindle bore: 62mm

Spindle hole after hydr.: 52mm

Spindle nose: A2-6

Spindle speed: 4000rpm

Main motor power: 7.5/11kW

X axis travel: 180mm

Z axis travel: 450/500mm

X/Z rapid traverse: 20/20m/min

Tool post: 8

Type of tailstock: Hydraulic/HPT

Taper of tailstock quill: MT4

Travel of tailstock quill: 90/0mm

Slant bed degree: 35degree

Overall dimension(LxWxH): 2650×2000×2050mm

Weight: 3700/3800kg
