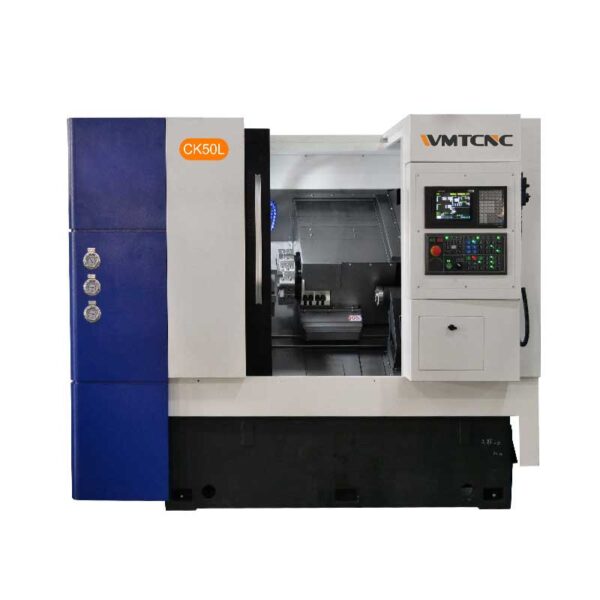

WMT CNC CK50L/400 斜床数控车床 (550mm)

Chuck size: 8inch

Max. swing over bed: 550mm

Max. length of workpiece: 400mm

Max. swing over cross slide: 320mm

Spindle bore: 62mm

Spindle hole after hydr.: 52mm

Spindle nose: A2-6

Spindle speed: 4000rpm

Main motor power: 7.5/11kw

X axis travel: 260mm

Z axis travel: 600mm

X/Z rapid traverse: 20/20 m/min

Tool post: 8

Type of tailstock: Hydraulic

Taper of tailstock quill: MT4

Travel of tailstock quill: 90mm

Slant bed degree: 35degree

Overall dimension(LxWxH): 2650×2000×2050mm

Weight: 4500kg
