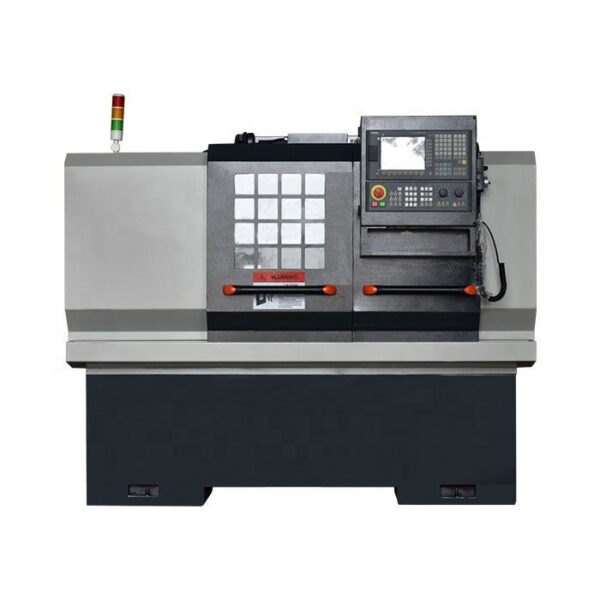

WMT CNC CK6432 平板数控车床 (360mm)

Max.swing over bed: Φ360 mm

Max.swing over carriage: Φ150 mm

Distance between centers: 500/750mm

Spindle bore: 60mm

Spindle nose: A2-6

Rail width: 260mm

Taper of spindle bore: MT6

Chuck: 8”

Range of speed (Variable): 150-2500 rpm

X axis travel: 350mm

Z axis travel: 500/750mm

X/Z rapid speed: 4/7m/min

X/Z screw: 2004/4006

Station of toolpost: 4 or 6 or 8

Stroke of tailstock sleeve: 100mm

Dia./hole of tailstock sleeve: 50mm/MT4

Main motor power: 3.7kw

Coolant pump power: 120w

Overall dimension (L*W*H): 1740/2000x1210x1650mm

Packing size (L*W*H): 1960/2230x1410x1990mm

NW/GW: 1275/1450kg;1450/1600kg
