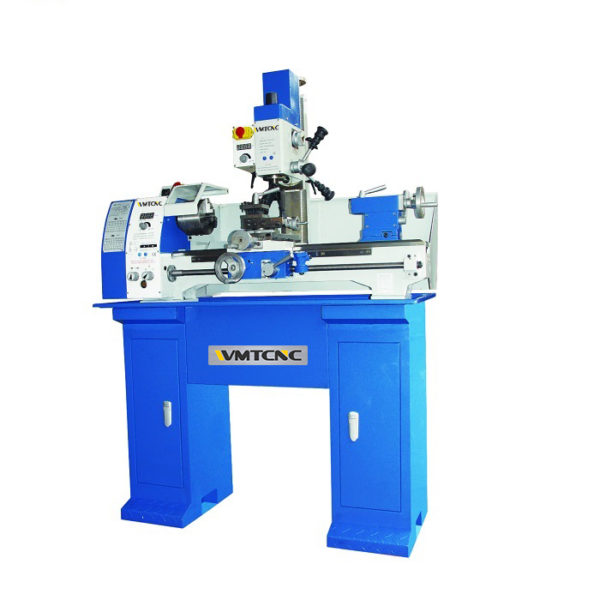

WMT CNC MPV250 组合铣床 (0.75kw)

Distance between centers: 500/750mm

Swing over bed: 250mm

Swing over cross slide: 150mm

Spindle taper: MT4

Width of bed: 135mm

Spindle bore: 26mm

Range of spindle speeds(variable speed: 50-2500rpm

Range of cross feed: 0.07 -0.20mm /r

Range of longitudinal feed: 0.085-0.832mm/rev

Range of inch threads: 8-56T.P.I

Range of metric threads: 0.2 -3.5mm

Top slide travel: 70mm

Cross slide travel: 115mm

Tailstock quill travel: 60mm

Taper of tailstock quill: MT2

Main motor: 0.75kw

Drilling and milling head: BF16

Spindle taper: MT2

Spindle travel: 52mm

Range of spindle speeds(variable speed: 50-2250rpm

Max.distance from spindle nose to table: 280mm

Max.distance from spindle to columm: 185mm

Motor power: 500w

Packing size (for machine): 1200/1400 × 580 × 860mm

Packing size (for stand): 760x530x415mm

N.W: 195/220kgs
