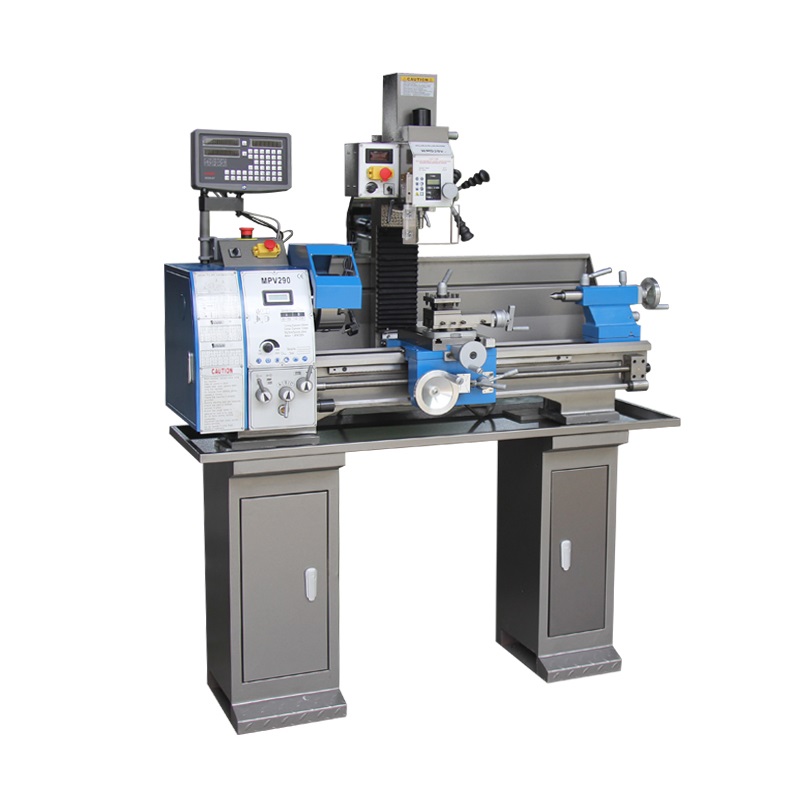

WMT CNC MPV290 组合铣床 (1.5kw)

Distance between centers: 700mm

Swing over bed: 290mm

Swing over cross slide: 165mm

Spindle taper: MT5

Width of  bed: 180mm

Spindle bore: 38mm

Range of spindle speeds (variable speed): 80-2000rpm

Range of  cross feed: 0.01 -0.10mm /r

Range of  longitudinal feed: 0.085-0.832mm/rev

Range of inch threads: 8-56T.P.I

Range of metric threads: 0.2 -3.5mm

Top slide travel: 70mm

Cross slide travel: 160mm

Tailstock quill travel: 70mm

Taper of tailstock quill: MT3

Main motor: 1.5kw

Drilling and milling head: BF20

Spindle taper: MT3

Spindle travel: 52mm

Range of spindle speeds (variable speed): 50-2250rpm

Max.distance from spindle nose to table: 325mm

Max.distance from spindle to columm: 185mm

Motor power: 600w

Packing size (for machine): 1450 × 720 × 1050mm

Packing size (for machine): 800x580x415mm

N.W: 325kgs
