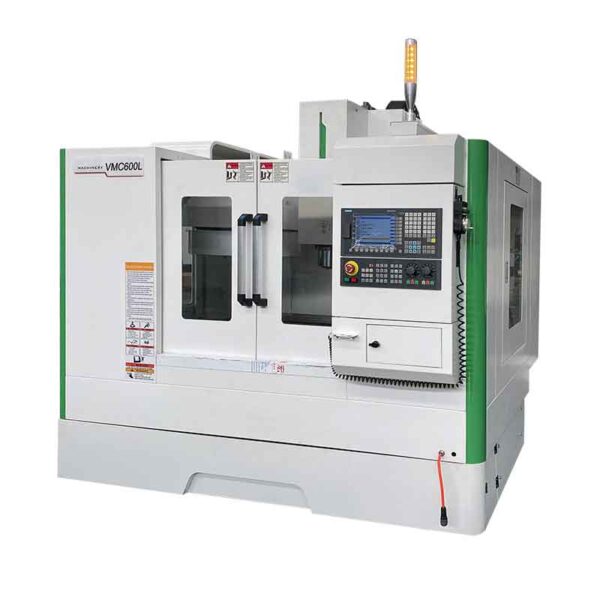

WMT CNC VMC600 立式加工站

Main Motor Power: 5.5KW

Spindle Max. Rotating Speed: 8000rpm

Z Motor Torque: 15N.m

X Motor Torque: 6N.m

Y Motor Torque: 6N.m

Spindle Taper: BT40

Worktable Size: 800X320mm

Travel (Longitudinal X/Horizontal Y/Vertical Z): 600X400X450mm

Distance of Spindle Axis to Guideway Plane: 350mm

Distance of Spindle End to Worktable: 80-530mm

Positioning Accuracy: 0.02mm

Repeated Positioning Accuracy: 0.01mm

Machine Overall Dimension (L*W*H) mm: 2600*1950*2400

Machine Net Weight: 2800KG

System Configuration: Siemens 808D
