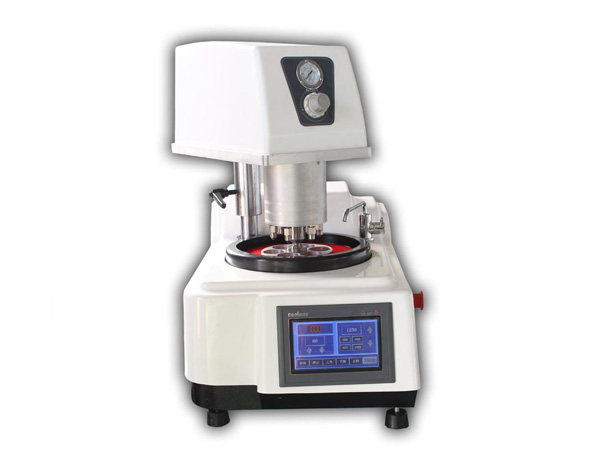

XHinstruments XHL-17A 研磨抛光机 (1000r/min)

Wheel diameter: φ250mm

Wheel quantity: 1

Rotational rotation: Clockwise or anticlockwise

Rotational speed: 50-1000r/min&400/600/800/1000r/min

Power head speed: 5-150r/min

Loading range: 5-60N

Sample preparation time: 0-3000S

Sample diameter: φ30mm(φ22mm -φ45mm)

Preparation sample quantity: 4 PCS (6 Pcs Optional)

Air pressure: 0-0.7MPa

Input Voltage: AC220V 50HZ

Input power: 900w

Dimension: 455mm X785mm X700mm

Net weight: 55kg


Automatic polishing machine is one kind of double disc type machine,which is the new generationg of high precison, the sample preparation process of automated manufacturing using the international advanced technology according to international standards.This machine adopts the advanced microprocessor control system,which makes the grinding disc,grinding head speed atepless adjustable,sample preparation pressure,time setting.The machine is applied more widely with the function of low noise and aluminum base.The machine is applicable to rough grinding,fine grinding,coarse polishing and polishing process as well as it is an ideal equipment for enterprises,scientific research institutions and colleges laboratory.
