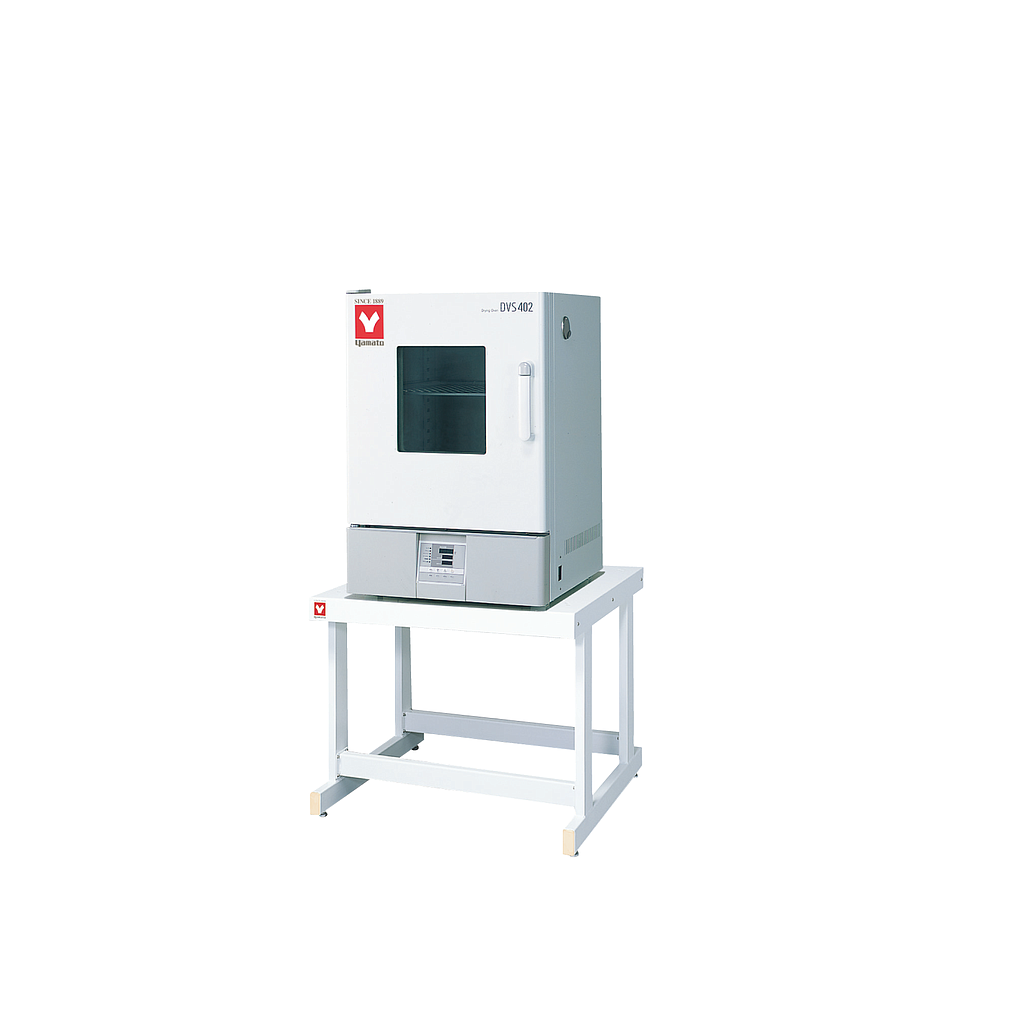

Yamato DVS402 可编程自然对流烘干箱 (99L, 1.2kW)

Method: Natural gravity convection

Operating temp. range: Room temp.+5~260℃

Temp. control accuracy: ±1℃(at 260℃)

Temp. distribution accuracy: ±5℃(at 260℃)

Max. temp. reaching time: Approx. 90 min.

Interior material: Stainless steel

Exterior material: Cold rolled steel plate with melamine resin baking finish

Heat insulating material: Glass wool

Heater: Stainless pipe heater 1.2kW

Observation window: 250×280 mm Chemically strengthened glass×3

Cable hole: 30 mm l.D.×1 pcs.(right side)

Exhaust port: 30 mm l.D.×2 pcs.(on top)

Temp. controller: 3 patterns program controller, PID control by microprocessor

Heater circuit control: SSR control

Sensor: K-thermocouple

Shelf plate / Shelf bracket: Stainless steel, 2 pcs. / 4 pcs.

Internal dimensions(W×D×H mm): 450×490×450mm

External dimensions(W×D×H mm): 560×601×820mm

Remarks(dimensions): 99L

Power Source: AC220V 6A Single-phase

Weight: 48kg
