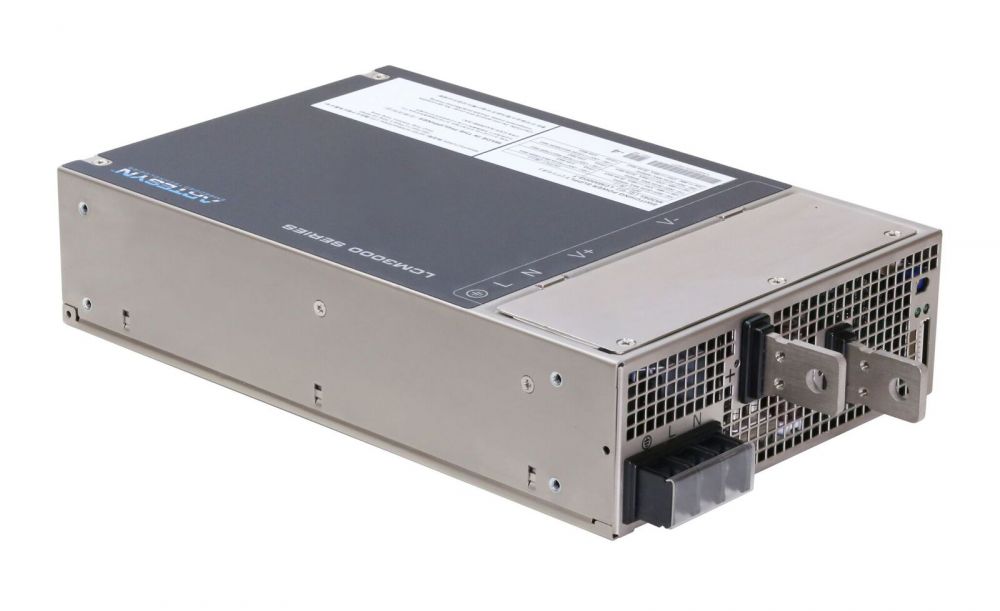

Advanced Energy LCM3000U-T AC-DC Power Supply (36Vdc; 83.3A)

Output Voltage:  36Vdc

Minimum Load:  0A

Maximum Load:  83.3A

Trim Range (±25%):  27 - 45Vdc

Vprog Adjustment Range (20% to 125%Vo)1:  7.2 - 45Vdc

Adjustment Range:

+ Maximum Load:  7.2 - 36Vdc

+ Max Power (3000W):  36 - 45Vdc

SPECIAL FEATURES

-  3000 watts output power

-  Low cost

-  2.5” x 7.0” x 10.9”

-  15.7 watts per cubic inch

-  Industrial/medical safety

-  -40 ℃ to 70℃ with derating

-  5 Vdc @ 2 A Housekeeping

-  High efficiency: 90% typical

-  Variable speed “smart fans”

-  DSP controlled

-  Conformal coat option

-  ±25% adjustment range; Up to +33% on LCM30007-T

-  V-Programming from 20% to 125%; Up to 133% on LCM30007-T

-  VAR configurable to any voltage from a single unit

-  Semi F47 compliance at high line

-  Five-year warranty

-  Supports redundant operation

COMPLIANCE

-  EMI Class A, with 6db margin

-  EN61000 Immunity

-  RoHS3

SAFETY

-  UL/cUL Recognized

-  ITE(UL/CSA62368-1)

-  ANSI/AAMI ES60601-1L

-  TUV-SuD ITE + Medical

-  CE LVD (EN62368-1 + ROHS)

-  UKCA Mark

-  CB Report

through Demko for IEC60950-1

through TUV-SuD for IEC60601-1

through DEMKO for IEC62368-1
