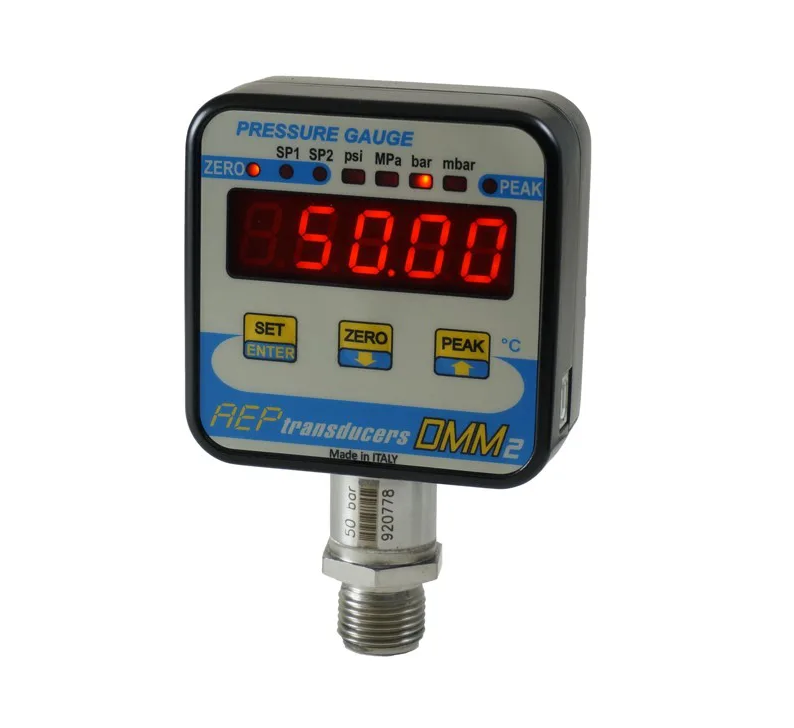

AEP Transducers DMM2 Digital pressure gauge (700 bar)

Main Features:

Accuracy (Linearity And Hysteresis) : ≤ ±  0.15 % F.S. STANDARD

Pressure Units : bar – mbar – psi – MPa

Temperature Indication:

a) Resolution: 0.1 °C

b) Accuracy: ± 1 °C

Reference Temperature: +23 °C

Operating Temperature:  0 / +70 °C

Storage Temperature: -10 / +80 °C

Relative Humidity: < 90 % not condensed

Temperature Effect (1 ° C):

a) on zero: ≤ ± 0.002 %

b) on sensitivity: ≤ ± 0.002 %

Internal Resolution: 24 bit

Readings Per Second Programmable: from 2.5 to 1200 (1,2 kHz)

Digital Filter Programmable: 0 ÷ 5

Resolution Programmable: 1, 2. 5, 10

Zero Function: 100%

Peak Function: Active in the POSITIVE /NEGATIVE RANGE

Menu Lock (Loc): To Protect parameters from changes

Communication: USB 2.0

Communication Rate In Continuos Mode: Max 1200 values per seconds

Max Distance: 5m

Red Display Highly Efficient: 7 segments

Display Height: 13 mm

Protection Class (En 60529): IP40

Sensor Execution Material: INOX 17-4 PH

Case Execution Material: ALUMINUM

Mechanical Limit Values::

a) service pressure: 100% F.S.

b) limit pressure: 150% F.S.

c) breaking pressure: >300% F.S.

d) highly dynamic pressure: 75% F.S.

Process Coupling : 1/2" G MALE

Seal Recommended : USIT A 63-18

Tightening Wrench: 27mm

Tightening Torque: 28Nm
