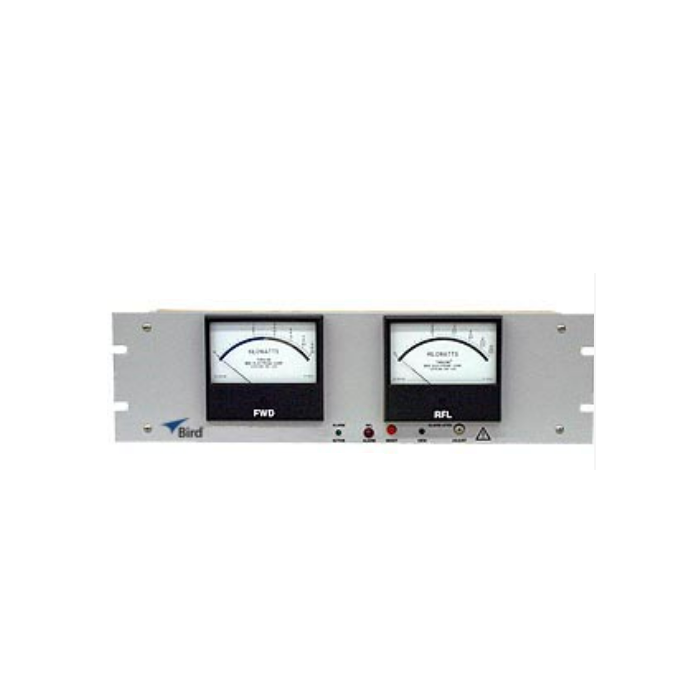

Bird 3128A RF Power Monitor (100 mW ~ 10 kW)
Manufacturer: Bird Model: 3128A - Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Power Range: 100 mW to 10 kW
Frequency Range: 450 kHz - 2.7 GHz
Insertion VSWR: with N connectors 1.05 max. to 1000 MHz, 1.1 max. to 2700 MHz
Accuracy: ± 5% of full scale
Meter Scales: FWD and RFL 25, 50, 100 W
Meter Sensitivity: 30 µA/1400 ohm
Alarms: Front Panel Buzzer and Red LED
AC Power: 115/230 V, 50/60 Hz @ 0.125 A
DC Power: 9 ~ 16 V @ 1 A
Connectors
Finish: Gray Powder Coat
Dimensions(W x H x D):
19" x 5-7/32" x 3-3/4"
483 x 133 x 95 mm)
Weight: 5 lbs. (2.28 kg)
