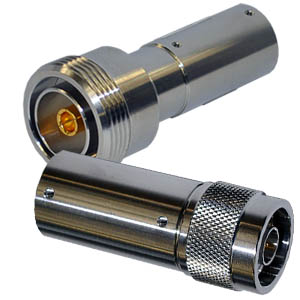

Bird 5-T-MN Termination (50 Ohm, N(M))
Manufacturer: Bird Model: 5-T-MN Origin: USA Guarantee: 12 Month - Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Power Rating : 5W
Frequency Range and VSWR : DC - 1 GHz @ 1.10:1 max.
1 GHz - 6 GHz @ 1.25:1 max. (N type)
1 GHz to 4 GHz @ 1.25:1 max. (BNC and TNC)
Temperture Range : -40 to +40°C
Product Type : Dry (Convection-Cooled)
Operating Position : Any
Connectors : BNC, 7/16 DIN, N, TNC, 4.1/9.5
Finish : Tri-Alloy
Dimensions : 1.6" L x 0.8" Dia., with N (M) connector (40.7 x 20.4 mm)
Weight : 1.9 oz. (55 g)
