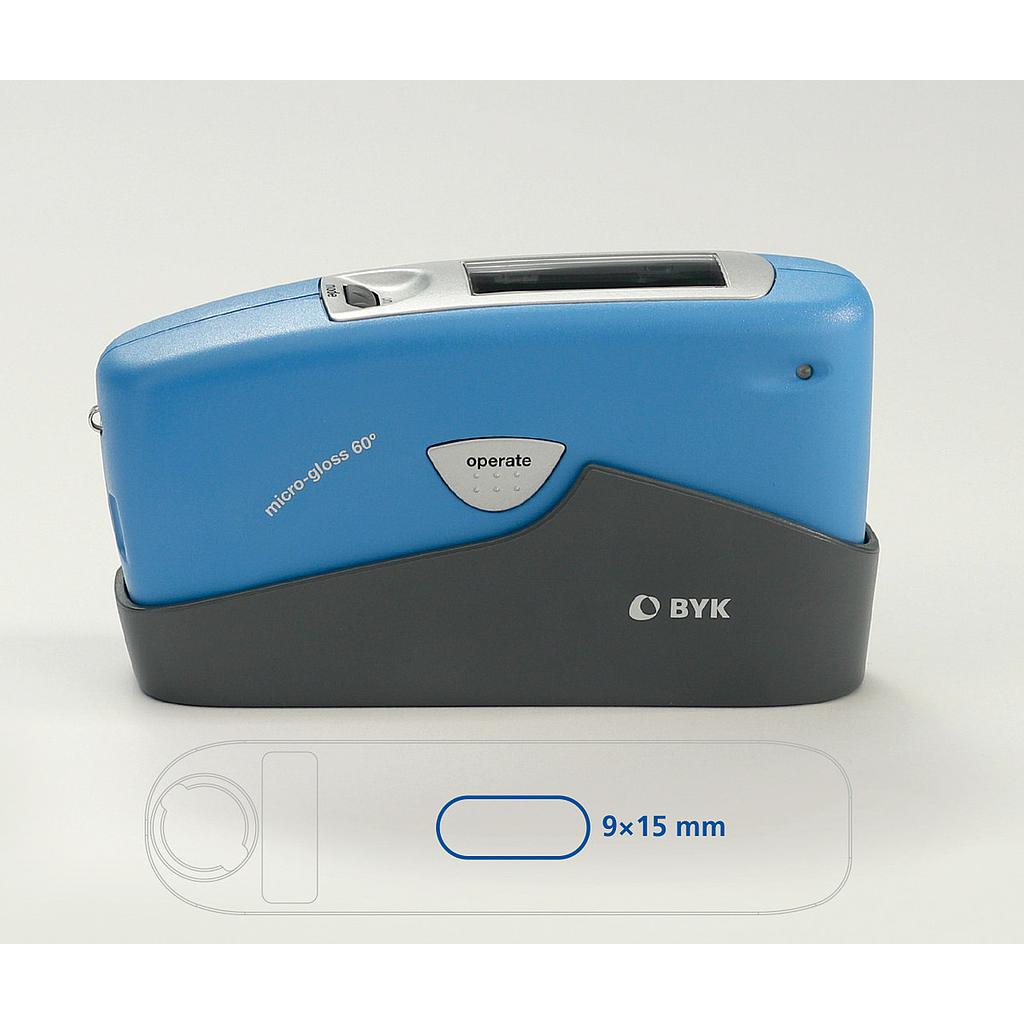

BYK micro-gloss 60° Single angle gloss meter (Single angle 60°, semi gloss surfaces)

Technical Specifications

Geometry: 60°

Measurement Area / Performance: large area

Application: semi gloss

Measuring Area: 9 x 15 mm

Measuring Area: 0.35 x 0.6 in

Gloss Measurement

Measuring Range: 0 - 1000 GU

Repeatability: 0 - 100 GU:  ± 0.2 GU

                       100 - 2000 GU:  ± 0.2 %

Reproducibility: 0 - 100 GU:  ± 0.5 GU

                         100 - 2000 GU:  ± 0.5 %

Spectral sensitivity: CIE standard observer for illuminant CIE-C

General

Measuring time: 0.5 seconds / geometry

Memory: 999 readings with date and time

Interface: USB

Languages: English French German Italian Spanish

Power supply: one 1.5V AA Alkaline Battery, or via USB-port

Battery Capacity: 4,000 readings

Weight: 0.4 kg

Weight: 0.9 lb

Operating temperature: 15 - 40 °C

Operating temperature: 60 - 104 °F

Relative humidity: up to 85 %, non-condensing

Dimensions: L x W x H: 15.5 x 4.8 x 7.3 cm

Dimensions: L x W x H: 6.1 x 1.9 x 2.9 in

Delivery Content

Glossmeter
Calibration holder 60° (4443)
USB-cable micro-gloss (4405)
Software with 2 licenses for download:
smart-lab Gloss (4866) or smart-process Gloss (4867)
Battery
Traceable certificate
Manual
Carrying case
