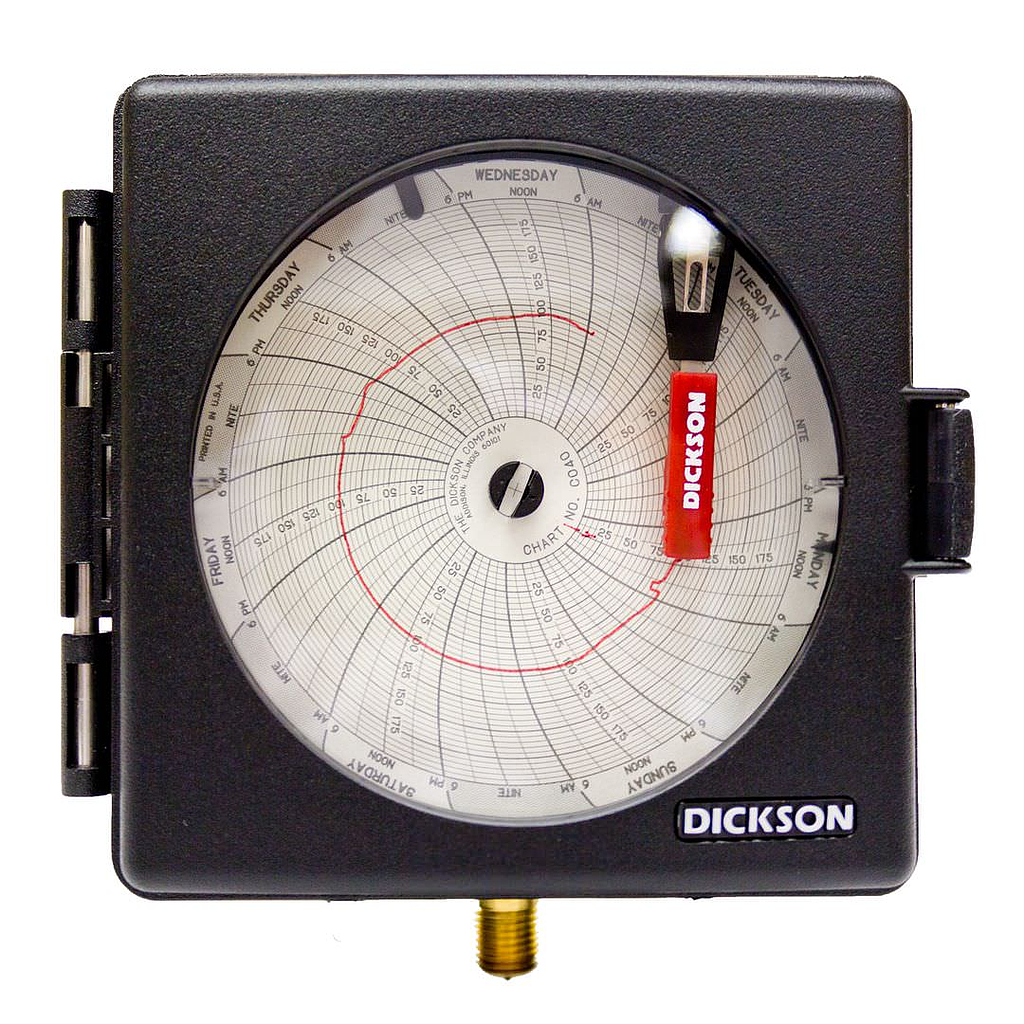

Dickson PW470 Pressure Chart Recorder (0.0 ~ 100.0PSI )

Ambient Operating RH Conditions: 0-95% RH non-condensing

Ambient Operating Temperature Conditions: -22.0°F to 122.0°F (-30.0°C to 50.0°C)

Battery Life (Avg): 1 Year

Calibration Options: N100, N300

Channels: CH1: Pressure

Chart Rotation Speed: 7 day or 24 hour switchable

Dimensions: 6.25 x 6.0 x 2.9in

Enclosure: Velox PBT NEMA 4X with Polycarbonate Door Window (Weather/Water Resistant)

Fitting: 1/4" NPT Thread, 5/8" Hex

IP Rating: 66

Included Accessories: "One AA Battery, Red Pen and Quick Start Guide. *Charts sold separately."

Mounting Options: Stem or Wall Mount (With Keyhole)

Power Source: Battery; One AA Battery (User Replaceable)

Pressure Accuracy: 2% of Full Scale

Pressure Range: 0.0 to 100.0PSI

Response Time: 1 second

Unit Weight: 1.8 lbs
