Eijkelkamp 06.15.SA Penetrologger with GPS - standard set (0...10000 kPa, 80cm, standard set)

Description

This lightweight penetrologger of Royal Eijkelkamp is ergonomically designed and can measure up to a depth of 80 cm. The penetrologger is used to measure the penetration resistance of the soil. The penetration resistance is a means to determine the carrying capacity of the soil and the ease with which roots can grow through the soil. This is important in agricultural, farming and civil engineering techniques.

With the built-in data logger the data is easily stored for further processing on your PC. The penetrologger contains an accurate internal GPS system (16 channels GPS receiver) to determine the exact measuring location. The coordinates stored in the penetrologger can be linked to a location or map using software (or less accurately via the Internet). The penetrologger results are displayed in MegaPascals (MPa) and Newtons (N) as a function of depth. The penetrologger also derives the Cone Index (CI).

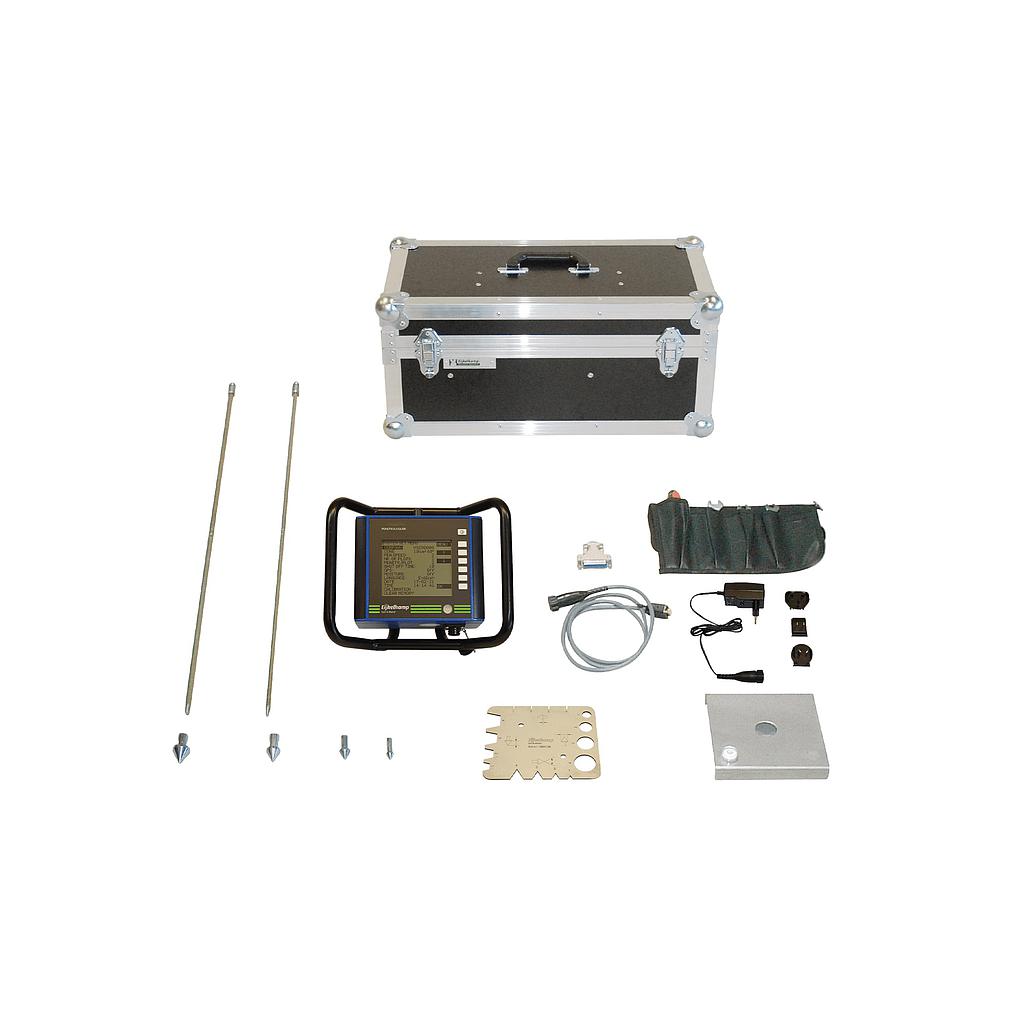

Set contains

Penetrologger body

4 different cones

2 probing rods

Battery charger

RS232 cable + adapter RS323 to USB

Depth reference plate

Cone check

Driver software for converter cable

Penetroviewer software, downloadable below

Accessories

Rugged transport case

Brochure

Manual
