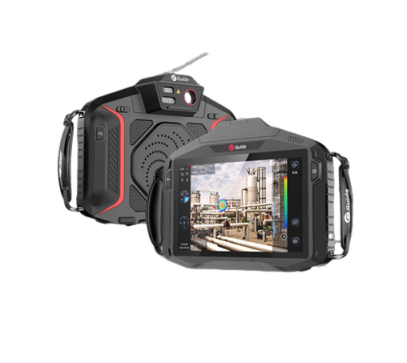

Guide FA611 Acoustic & Thermal Imaging Camera (640×512@12μm, -40°C~150°C, 0°C~650°C)
Manufacturer: Guide Model: FA611 - Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Acoustic Sensor
Microphone array: 128 low-noise MEMS microphones
Bandwidth: 0 kHz to 65 kHz, Adjustable range
SPL range: 0~120 dB
Frame rate: 30 Hz
Thermal Sensor (Thermal module required)
Detector type: VOx, 640×512@12μm
Focal length: 13mm/17.7mm
Measurement range Support auto-switching: -40°C to 150°C, 0°C to 650°C
Measurement accuracy: ±2°C or ±2%, whichever is greater
Image display
Display screen: 10.1’’ LCD, touch screen, 1920×1200
Digital camera: 13MP
Others
Laser: Support laser indication, laser ranging range of 0.1m to 35m
Operating time: Built-in battery + External battery: 4 hours
Weight: 1.7kg to 2kg (with built-in battery)
Size: 309×243.5×74mm/309×243.5×100mm
