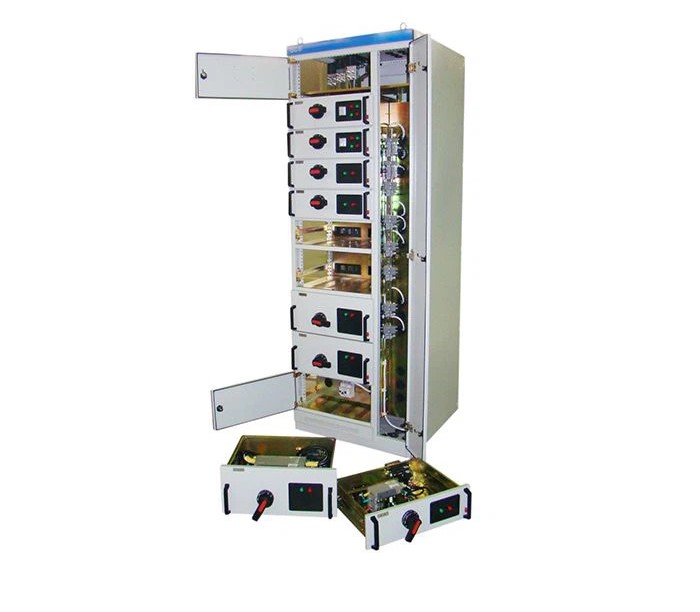

Huazheng GCS Type Low Voltage Electric Withdrawable Switchgear Panel

- Rated voltage of main circuit(V): AC 380(400), (660) (Can also be customized according to customer requirements)

- Rated voltage of auxiliary circuit(V):

AC 220, 380(400)

DC 110, 220

- Rated frequency(Hz): 50(60)

- Rated insulation voltage(V): 660(1000)

- Rated current (A): Horizontal bus: ≤4000

                     Vertical busbar(MCC): 1000

- Bus rated short-term withstand current(kA/1s): 50, 80

- Bus rated peak withstand current(kA/0.1s): 105, 176

- Power frequency test voltage(V/1min):

Main circuit: 2500

Auxiliary circuit: 1760

- Bus:

Three - phase four - wire system: A, B, C, PEN

Three phase five wire system: A, B, C, PE, N

- Protection grade: IP3L0, IP4L0
