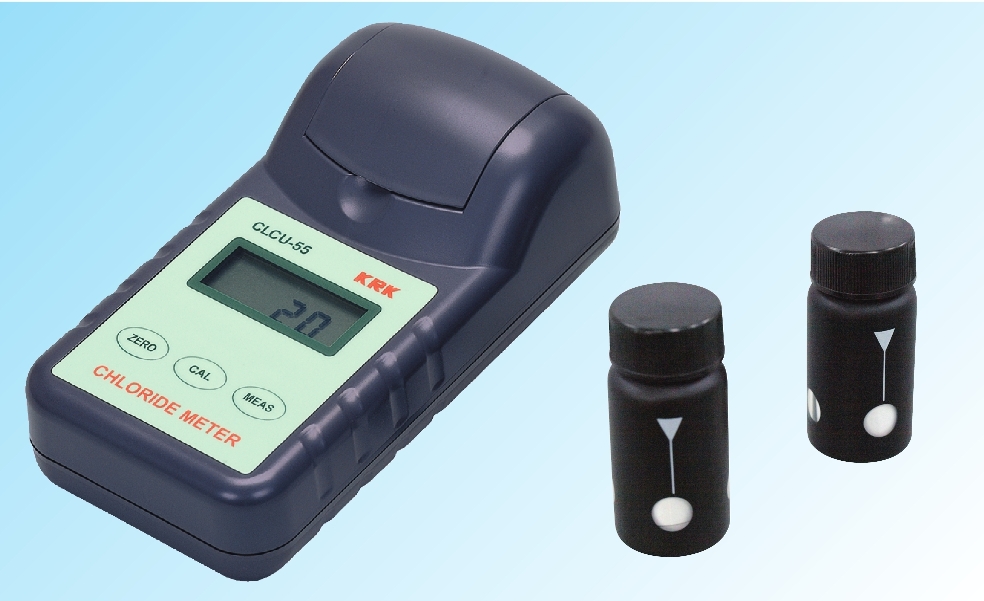

KASAHARA CLCU-55 Chlorine ion meter (0.0~199.9g/L)

Measurement Targets: Chlorine ion concentration in copper sulfate plating bath

Measurement Equation: 90° Scattered Photometric Method

Measurement range: 0.0~199.9

Presentation Resolution:　0.1mg/L

Repeatability: ± within 5% (FS)

Response Time: 5 seconds after power ON

Automatic power off: Hold the measured value for 5 seconds, then auto power off

Measurement time: About 3 minutes each time

Self-diagnostic function: Battery voltage, poor calibration, LED degradation

Calibration: Normally only

zero calibration; Span calibration is performed as needed (using standard solution)

Power: AAA alkaline batteries (LR03×4) DC6V

External dimensions: 88（W）×174（D）×65（H）mm

Weight: Approx. 310g

Standard Configurations: Instrument body, alkaline batteries, 4 measuring cells, measurement reagent, calibration standard solution 50ml, micropipette (for water analysis), instruction manual, warranty card, carrying case
