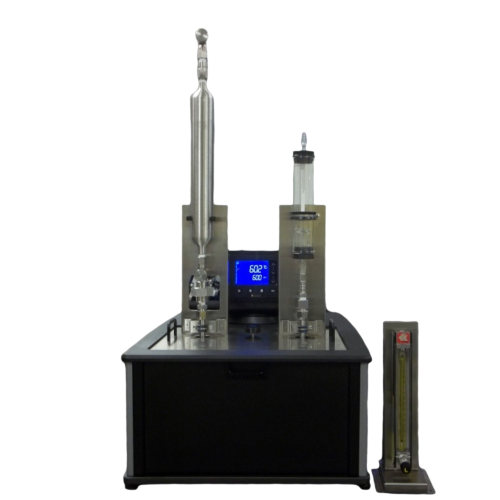

Koehler K48290 Hydrogen Sulfide Apparatus (28L)

For the detection of hydrogen sulfide in liquefied petroleum (LP) gases. The sensitivity of the test is about 4 mg/m3 (0.15 to 0.2 grain of hydrogen sulfide per 100 ft3) of gas.

Specifications

- Conforms to the specifications of: ASTM D2420, ISO 8819

- Temperature range: +5 to 150°C

- Temperature control stability: ± 0.05°C

- Temperature readout accuracy: ± 0.5°C

- Bath capacity: 28L (7.3gal)

- LPG cylinder capacity: 500mL

- Flow meter range: 2 – 3 L/min

- Thermometer range: -5 to +110°C

Electrical requirements: 220-240V 50/60Hz

Dimensions

- LxDxH,in.(cm): 23.6x19.7x20.9 (60x50x53)

- Net weight: 42 lb (19kg)

Included accessories

- KD2420 Glassware Kit

Comprised of:

- Glass Cylinder

- Rubber Stopper (2)

- Watch Glass

- Glass Rod / Hook

- K27853 LPG Sampling Cylinder, 500mL

Additional accessories

- K48200-1 LPG Flowmeter Assembly, Range 2-3L/min

- K48200-2 Lead Acetate Test Paper, 7mm Width, 5m Roll

- 250-000-15C ASTM 15C Thermometer
