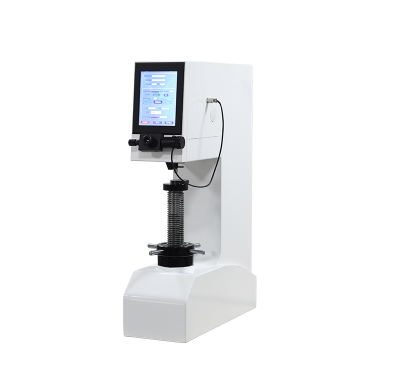

LABTT THB-3000MDX Brinell Hardness Tester With Automatic Turret

Brinell scale: HBW2.5/62.5、HBW2.5/187.5、HBW5/62.5、HBW5/125、HBW5/250、 HBW5/750、HBW10/100、HBW10/250、HBW10/500、HBW10/1000、  HBW10/1500、HBW10/3000

Test force(Kgf): 62.5kgf(612.9N)、100kgf(980.7N)、125kgf(1226N)、187.5kgf(1839N)、250kgf(2452N)、500kgf(4903N)、750kgf(7355N) 1000kgf(9807N)、1500kgf(14710N)、3000kgf(29420N)

Carried standard: BSEN 6506, ISO 6506, ASTM E10, GB/T231

Test force precision: 62.5~250kgf≤1%   500~3000kgf≤0.5%

Test device resolution: 0.1um

Hardness resolution: 0.1HBW

Dwell time: 0~99S

Data out put: Touch screen

Data storage: Results saved in U disk as Excel

Max Height of Specimen: 200mm

Distance of Indenter to outer wall: 155mm

Size: 550×210×800mm

Weight: 110kg

Power: AC220+5%,50~60Hz
