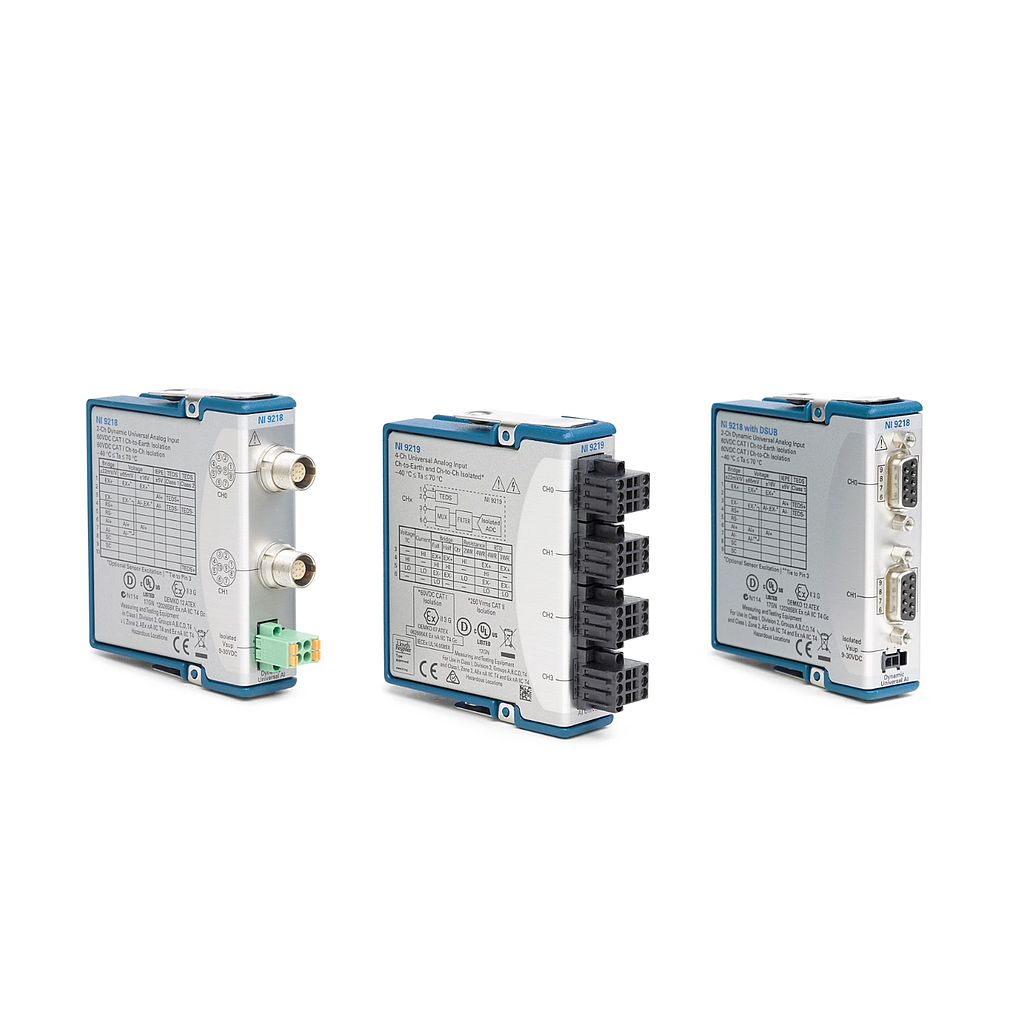

NI sbRIO-9218 C Series Universal Analog Input Module (51.2 kS/s/ch,60 VDC)
Manufacturer: NI Model: sbRIO-9218 P/N: 783362-02 - Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Maximum Number of Differential Analog Input Channels: 2
Maximum Sample Rate: 51.2 kS/s/ch
Analog Input Isolation: 60 VDC Ch-Ch Isolation
Supported Sensor Type: IEPE Bridge Accelerometer Powered
Electrical Signal Measured: Current Voltage
Front Connection Type: D-SUB (qty 2)
Conformal Coated: No
Enclosed: No
Supported Hardware Platform: CompactRIO
Provides analog input channels for voltage, current, temperature, and strain measurements in CompactDAQ or CompactRIO systems.
The C Series Universal Analog Input Module helps you perform multi-purpose measurements. This module includes built-in support for accelerometer, powered sensor, full-bridge, and voltage measurements as well as quarter-bridge, half-bridge, 60 V, and current measurements using measurement-specific adapters. You also can choose options to measure signals from sensors such as strain gages, resistance temperature detectors (RTDs), thermocouples, load cells, and other powered sensors.The C Series Universal Analog Input Module includes the NI-DAQmx driver and configuration utility that simplify configuration and measurements. NI-DAQmx supports NI programming environments as well as Python, ANSI C, C#.NET, and MathWorks MATLAB® software.
Datasheet
