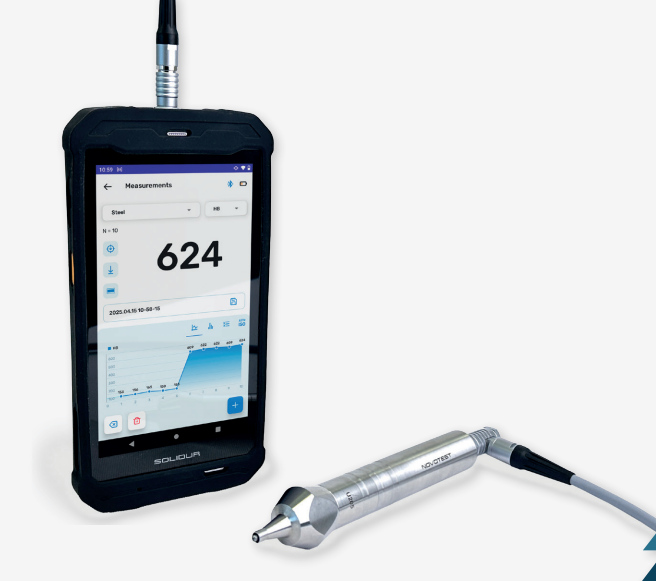

NOVOTEST SOLIDUR UCI Hardness Tester

UCI U2 probe loads:  1kg (10N), 5kg (50N), 10kg (98N)

Measurement error:  <4% (HV5, HV 10)

Scales: HV, HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK, HB, HBS, HBW, HK, HR 15-N, HR 30-N, HR 45-N, HR 15-T, HR 30-T, HR 45-T, HR-15W, HS, HLD, Rm, Knoop, Tensile strength Rm/MPa

Materials:

+ Pre-calibrated for Non-Austenitic Steel, Nickel and High-Nickel Alloys,

+ Cartridge Brass, Copper No. 102 to 142 Inclusive, Alloyed White Irons,

+ Wrought Aluminum Products, Steel (unalloyed, low alloy and cast),

+ Steel (quenched tempered condition), Steel (untreated, soft annealed or normalized conditions), Steel (quenched condition),

+ Cold working steels, High speed steels, X110MoCo9.8,

+ Hardmetals, Aluminium and its alloys *additional custom scales and materials for calibration

Measuring direction : Any direction 360°

Display:  5.5" touch screen, 720x1280, IPS LTPS

Camera:  13MP

Connectivity:  WWAN (2G/3G/4G, VoLTE), WLAN/Wi-Fi, Bluetooth, GPS, USB Type-C

CPU:  Octa-core ARM@Cortex -A53 MPCore 2.0 GHz

Body:  Explosion-proof industrial design, IP65 (IP67 optional) dust and water protection (IEC 60529)

Memory:  4GB RAM + 64GB ROM Memory

Languages:  English, Ukrainian, Russian *additional languages available by request.

Power supply / Charging:  Built-in battery 5100mA/h (Lithium Polymer) / USB 5V/2А

Batteries life:  12 h

Operating environment:  Temperature: -20°C ~ 50°C, Humidity: <95% R.H. at 35°С

Dimensions and weight of tester:  160х84x17.5 mm / 0.3 kg
