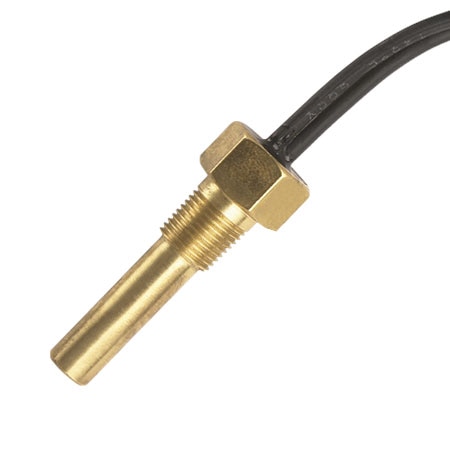

OMEGA TSW-TT-F3B-260R/WL Immersion Snap-Action Bimetallic Temperature Switches (260 °F, SPST NC)
Manufacturer: OMEGA Model: TSW-TT-F3B-260R/WL - Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Accuracy: ± 3 °C (± 5.4 °F)
Switch Type: SPST NC
switch-type: SPST NC
Cable Length: 6 in
Probe Length: 1 in
Pressure, Max: 5000 psi
Setpoint Type: Fixed
Probe Diameter: 0.38 in
Sensor Material: Brass
Electrical Rating: 3 A @ 240 Vac
Switch Activation: Rising
Operating Humidity: 0 to 80% RH
Electrical Connection: Wire Leads
Storage Humidity, Max: Humidity < 90%
Process Connection Size: 1/4 in
Process Connection Type: NPT Male
Temperature Sensor Type: Bi-Metal
Fixed Setpoint Temperature: 260 °F
Operating Temperature, Max: 325 °F
Operating Temperature, Min: 0 °F
