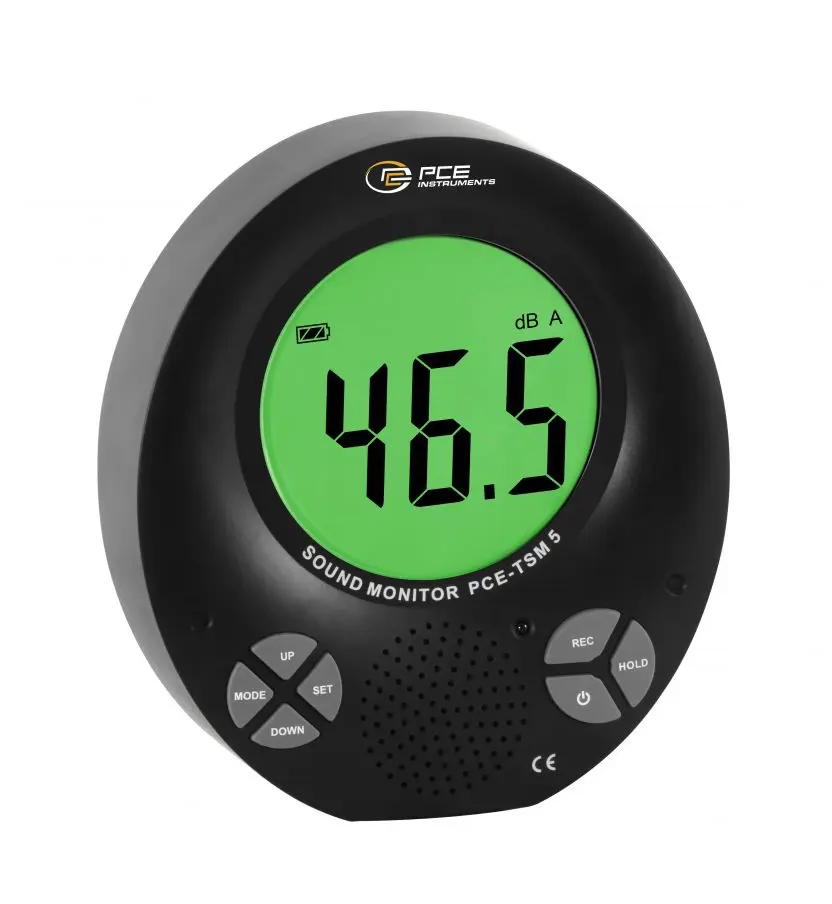

PCE TSM 5 Decibel Meter (35~135 dB)

Sound level

Measurement range : 35 dB ... 135 dB

Resolution : 0.1 dB

Accuracy : ±2 dB

General technical data

Measurement functions : MIN, MAX, HOLD, ALARM

Frequency : 31.5 ... 8000 Hz

Frequency rating : A

Display type : LCD with illumination

Display refresh rate : 2 x per second

Memory capacity (additional information) : 15 seconds audio and sound level

Microphone type : Electret condenser

Interface : 3.5 mm jack

Operating time : 60 h

Alarm modes : Acoustic: Voice output in German, English, Spanish, French, Japanese, Chinese

Visual: display background green, yellow, red

Menu language : English

Protection class (device) : IP20

Power supply : 9V DC, 1000mA

Plug type : Euro plug device

Weight : 490 g

Height : 197 mm

Depth : 49 mm

Operating conditions : -20 ... 60 °C , 10 ... 90 % r.H

Storage conditions : -20 ... 60 °C , 10 ... 75 % r.H

Delivery scope

1 x PCE-TSM 5 decibel meter

1 x 9 V 1 A plug-in power supply

1 x remote control

1 x screwdriver

6 x 1.5 V AA battery

1 x operating instructions

1 x mounting material

Details

This modern occupational decibel meter is a versatile instrument with a range of innovative functions. An outstanding feature of the occupational decibel meter is the large LCD display designed as a noise traffic light. The integrated noise traffic light of the decibel meter provides the user with visual information on the current noise level at a glance. The green, orange and red color scheme allows the user to see immediately whether the noise level displayed by the decibel meter is within the acceptable range or whether action is required.


In addition to the visual displays, the decibel meter also offers an audible alarm that can be configured in six different languages. This multilingualism ensures broad international applicability.

Another plus point is the ability to set the limit values on the health and decibel meter individually. Users can adjust the limit values for visual and audible warnings according to their specific requirements and local conditions.

The integrated memory of the health and decibel meter has a capacity of 15 seconds and stores the audio and sound data. An audio output allows the user to record or process the measured sound level data externally. The health and decibel meter can be operated in both battery and mains mode.

With the IR remote control, the most important functions of the health and decibel meter can also be operated remotely in working environments with limited access or difficult conditions.

The flexible use as a stand-alone or wall-mounted device makes the health and decibel meter adaptable for a wide range of application scenarios. This versatility and innovative features make the health and decibel meter a helpful tool in areas such as schools, kindergartens, conference rooms and rooms with similar uses
