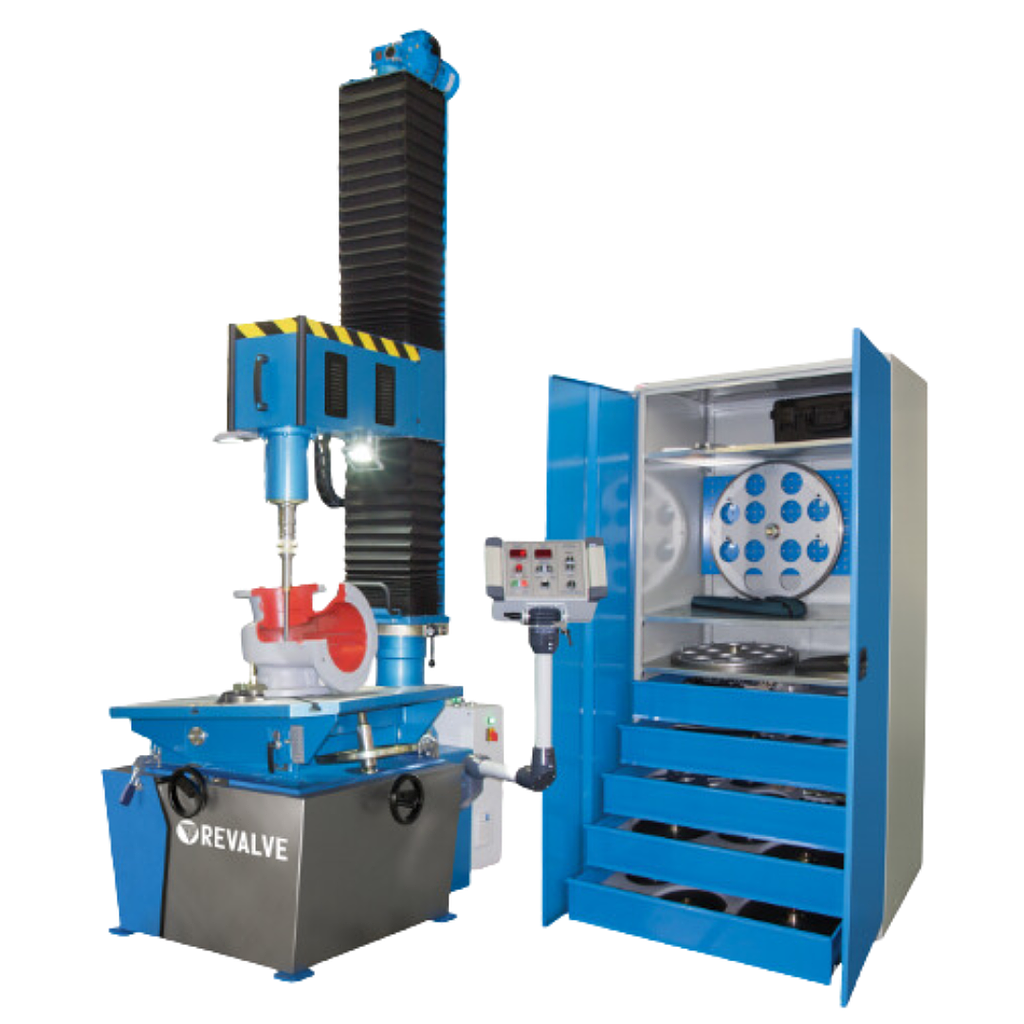

Revalve SPSH-600-N Machines for grinding & lapping of the valve flat seats and sealing surfaces
Manufacturer: Revalve Model: SPSH-600-N - Request a Quotation
- Request a Quotation
- Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Specifications:
Valve range, DN, mm (″): 50…600 (2...24)
Maximum diameter of the mounted valve flange (″): 890 (36)
Maximum face-to-face length of the mounted valve(″): 1150 (46)
Maximum weight of the mounted part: 1000
Dimensions of the table working surface(″): 900х900 (36x36)
Tilt angle of the table: 0…12 degrees
Spindle rotation speed adjustment: stepless
Spindle rotation speed: 14…200 rpm
Machined surface roughness: 0,2…0,4μm
Power consumption: 2,6 kW
Power supply: 400/50 V/Hz
Overall dimensions (LхWхH)(″): 1630х1640х3130 (64x64x123)mm
Weight (with tooling package): 1420kg
