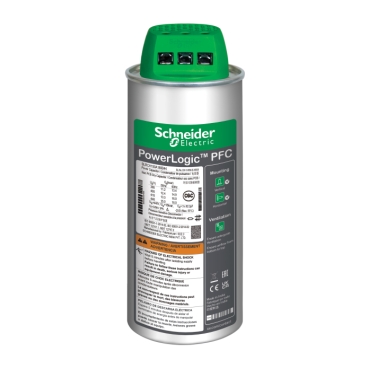

SCHNEIDER BLRCH170A204B48 Capacitor (17/20.4 kvar - 480 V - 50/60Hz)

Range of product: PowerLogic

Product or component type: Heavy duty capacitor

Network frequency: 50/60 Hz

Series name: HDuty

Network harmonic content: <= 20 %

Electrical parameters: 17 kvar 480 V 50 Hz

                                    20.4 kvar 480 V 60 Hz

Maximum permissible voltage: 1.1 x Un (8 hours over 24 hours)

Continuous overcurrent capacity: 1.8 x In

Rated voltage: 480 V AC 50/60 Hz

Dielectric losses: < 0.2 W/kvar

Power losses: < 0.5 W/kVAr

Capacitance tolerance: - 5 % to 10 %

Voltage test: 2.15 x Un AC between terminals for 10 s

                    <= 660 V - 3 kV AC between terminal and container for 10 s

                    >= 660 V - 6 kV AC between terminal and container for 10 s

Inrush current: 250 x In

Maximum switching operation per year: 7000

service life in hours: 130000 h

Dielectric material: Metallized polypropylene film with Zn/Al alloy, special resistivity & profile, special edge (wave cut)

Impregnation material: Non-PCB dry PUR resin Biodegradable

Type of installation: Indoor installation

Connections - terminals: ClampTite terminal

Mounting mode: Upright/horizontal

Diameter: 90 mm

Height: 242 mm

Net weight: 1.6 kg
