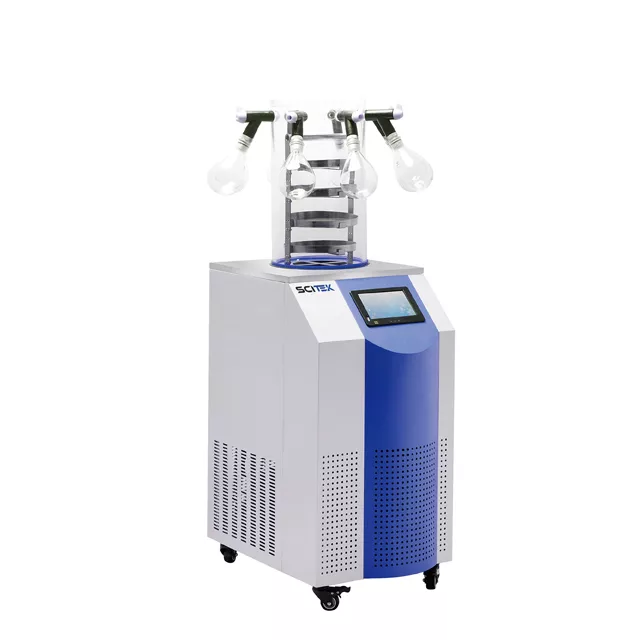

Scitek FD-18AP Vertical Freeze Dryer (No heating, -60 ℃)
Manufacturer: Scitek Model: FD-18AP - Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
"A: No heating, cold trap temperature -60 ℃
Type: Standard chamber with 8 port manifold
Freeze Drying Area (m2) : 0.18~0.27
Tray (Qty): 4/6(Optional)pcs
Tray Size (ΦxH)(mm): Φ200x20
Height Between Trays (mm) :81/51
Condenser Temperature (℃) : -60
Condenser Capacity (L) : 28
Condenser Size (DiameterxH)(mm) : Φ300x420
Vacuum Degree (No-loading) (Pa) : ≤5
Ice Condensing Capacity (kg/24h) : 6
Loading Capacity/ Shelf (mL) : 450
Total Loading Capacity (mL): 1800~2700
Drying Chamber Size (Standard): Circle: Φ300mm; Height: Φ450mm
Total Qty. of Vial Φ22: 270
Total Qty. of Vial Φ16: 555
Total Qty. of Vial Φ12 : 990
Refrigerant Type : CFC-free
Standard Accessories:
Vacuum pump 4L/s, 14.4m³/h, material tray, material rack, PC cover(for all modes); Conical-mouth flask 500mLx8pcs , switch valvex8 pcs
Consumption: 1.2kW(-60℃)
Electricity: AC220V,50Hz
External Size (WxDxH)(mm): 560x710x940/1390
Shipping Size (WxDxH) :
+Main Body : 790x630x1180mm
+Drying Chamber : 410x410x640mm
+Vacuum Pump: 220x580x370mm
Gross Weight: 150kg(-60℃)
"
