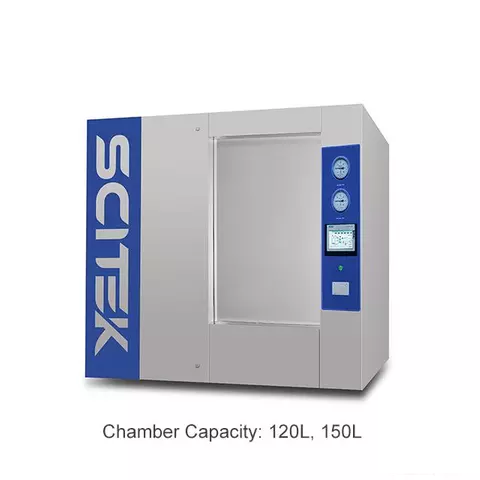

Scitek ST-BH120PV Horizontal Pulse Vacuum Sterilizer with Sliding Door, 120L
Manufacturer: Scitek Model: ST-BH120PV - Request a Quotation
- Request a Quotation
- Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
"Chamber Size (ØxL)mm: 680×1180×1500
Volume (L): 120
Overall Sizes (WxDxH)(mm): 2007×2110×2113
Weight (kg): 2300
Steam Consumption (KG/C): 600
Water Consumption (KG): 65
Power :380V, 50HZ, 3.5KW(72KW)
N.W.(kg): 2300
Chamber Design Pressure: -0.1/0.3MPa
Jecket Design Pressure: 0.3MPa
Generator Design Pressure: 1.0MPa
Design Temperaure: 150℃
Maximum Operating Temperature: 139℃
Maximum Operating Pressure: 0.25MPa
Chamber Relief Valve: 0.28MPa
Jacket Relief Valve: 0.28MPa
Accuracy of Temperature: 0.1℃
Accuracy of Pressure: 0.1KPa
Sterilization Temperature Control Accuracy: ±1℃
Temperature Uniformity: ±1℃
Negative Pressure Pulsating Vacuum: -80~0KPa
Across the Pressure Pulsation: -80~80KPa
Positive Pressure Pulse: 0~9 times
Maximum Vacuum: -96KPa"
