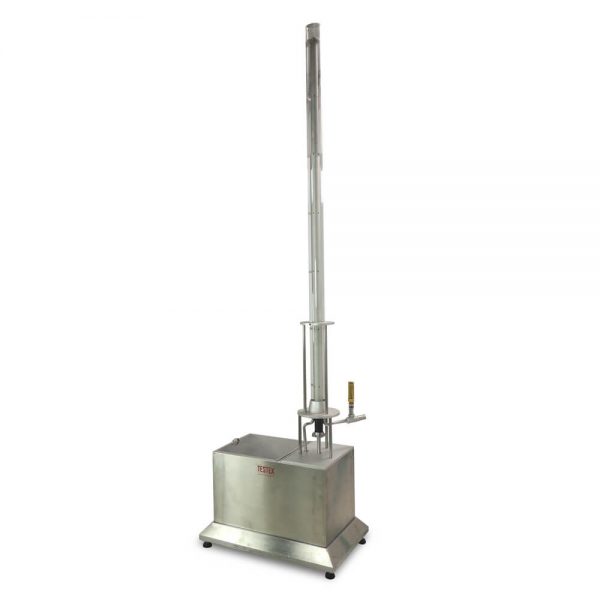

Testex TF161 Rainproof Tester
Manufacturer: Testex Model: TF161 Guarantee: 12 Month - Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Weight: 139 kg
Dimensions: 460 x 460 x 3300 mm (L x W x H)
Test Dimensions: 200x200mm
Blotting Paper Dimensions: 152x152mm
Sample Nip Width: 152mm
Sample Nip Space Between: 165mm
Sample Nip Dimensions: 178x229mm
Nozzle Diameter: 0.99±0.013mm
Nozzle Space Between sample: 305mm
Standards: AATCC 35, BS EN ISO 22958, GB/T 23321
Rain Tester, widely used in labs to test the penetration resistance performance of fabrics or composites under different intensities of water impact(by stimulating the rain dropping gravity impact via different water level inside the tube, pre-determined according to different standards). Simulated rain horizontally impacts fabric samples mounted vertically in a stainless steel bath. Samples are backed with a standardized blotting paper, which is weighed before and after each test. The rain is formed by a column of water, which can be adjusted from 600mm to 2400mm.
