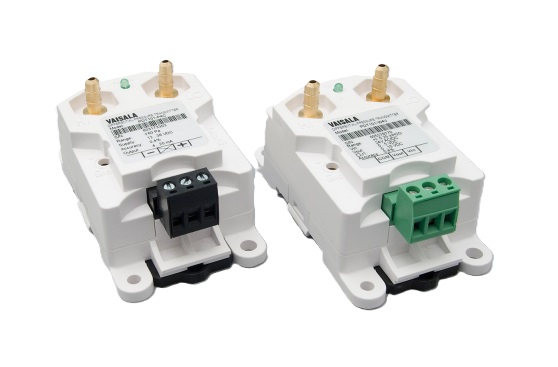

VAISALA PDT101-W4V Differential Pressure Transmitter (±0.25 in H2O; 0–5 V)
Manufacturer: VAISALA Model: PDT101-W4V Origin: Finland - Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
- Measurement ranges (bidirectional): ±0.25 inH2O
- Overpressure:
Proof pressure: 1.0 bar
Burst pressure: 1.7 bar
Static pressure: 1.7 bar
- Mounting position:
Error (zero adjustable): ≤ 1 %/g (calibration in vertical position is standard)
- IP rating: IP40
- Weight: 0.07 kg
- Process connection: 1/4" barbed fittings
- Tubing outer and inner dimensions:
Outer dimension (O.D): 1/4" (6.35 mm)
Inner dimension (I.D): 1/8" ( 3.17 mm)
- Max. loop resistance for 4 … 20 mA ≤ (Supply voltage - 12 V)/0.022 A
- Supply current: Max. 20 mA for 4–20 mA output signal
- Optical process diagnostics: LED visual indicator
- Electrical connection:
Euro style pluggable terminal block accepts 12–26 AWG wire (0.13 up to 3.31 mm2)
- Output signal:
3-wire: 0–5 V DC
- Operating voltage:
3-wire output 0–5 V DC: 11.5–36 V DC or 24 V AC
