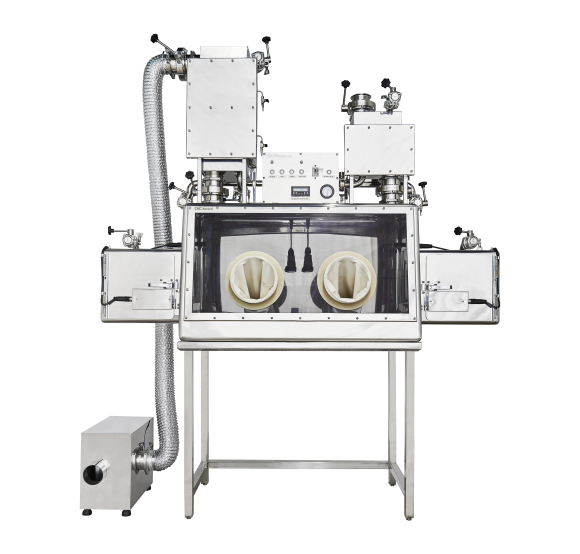

CHC Biotech TGB-G2 生物安全キャビネット クラスⅢ

- BSC Class III manufactured in compliance with international guidelines

Manufactured in compliance with international performance standards from CDC, NIH and AGS to ensure researcher safety.

- Use durable stainless steel 304/316

The durable STS 304/316 is used to round and weld all sides and corners to facilitate cleaning and decontamination of the interior workspace. A valve made of stainless steel allows easy control of air flow and internal pressure.

- High efficiency HEPA Filter

Filter the air with one HEPA Filter and two HEPA Filters, respectively, when entering and exiting the air.

- Convenient filter integrity test

Each filter box is equipped with Upstream, Downstream ports to facilitate filter integrity testing.

- Decontamination Ports

It is possible to select the location of Decontamination ports considering the type of pollutant and the specifications of BSC Class III, and the supply/exhaust pipe connection has been simplified to remove contamination through the coupling port.

- Ability to incorporate a wide range of systems

RTP (Rapid Transfer Ports), Dunk Tank, Autoclave, and Bag-in/Bag-out (BIBO) systems can be easily combined to introduce and remove samples.

Biological Safety Cabinet Class Ⅲ

The Biological Safety Cabinet is a basic safety equipment that is used to protect researchers from pathogenic microorganisms and infectious substances during material handling, tests, and experiments while ensuring a safe laboratory environment

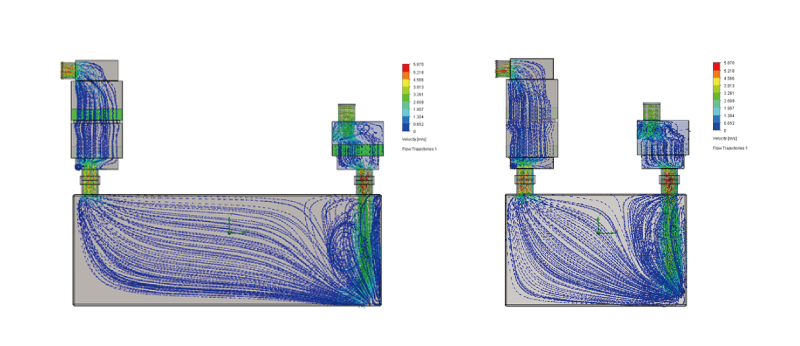

Airflow diagram:

Airflow Characteristics

Due to the nature of the Class III bio-safety workstation where Turbulent Flow is formed, air is introduced through one HEPA Filter and discharged to the outside through two HEPA Filters through the workspace.
