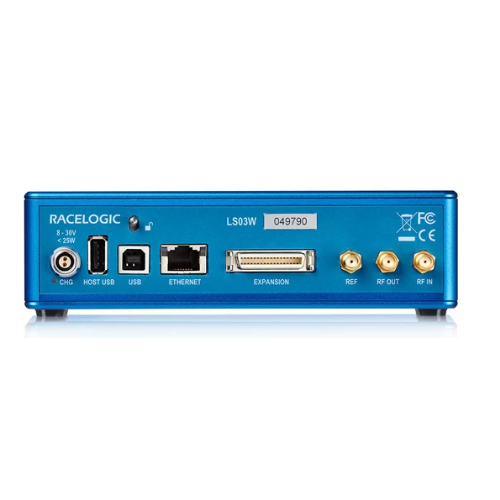

LABSAT Labsat 3 Wideband GNSSシミュレーター (P/N: RLLS03W-RP, Record & Replay)

Constellations: GPS L1, L2, L5; Galileo E1, E5a/b, E6; GLONASS L1, L2, L3; BeiDou B1, B2, B3; QZSS L1, L2, L5; NavIC L5 & S-Band; In Band SBAS

Further signals in the upper and lower L band can be configured with the internal webserver. Bespoke requirements like Iridium & Sirius XM radio frequencies are available on request.

Nominal Output Signal Level: -73dBm/MHz @ 0dB

Variable attenuator provides between +20 dB and –69 dB of adjustment during replay

RF Channels : 3

RF Channel 1 Centre Frequency: Selectable

RF Channel 2 Centre Frequency: Selectable

RF Channel 3 Centre Frequency: Selectable

Number of Satellites Observed: All in view

Sampling Frequency: 10.23MHz, 30.69MHz, 58MHz

Bandwidth: 10MHz, 30MHz, 56MHz

Quantisation:  1, 2 or 3 bit (I & Q)

Data Format:  I & Q

Additional Logging:  2x CAN channels, 4x Digital channels

Removable Battery Pack: Yes

Media Storage Included:  1TB SSD & 8GB SD card (SD card for firmware upgrade only)

Active Antenna Voltage Supply: 2.8 – 4.6 v

Reference Oscillator:

TCXO

Temperature Stability +/- 0.05 ppm

Frequency Stability +/- 1 ppm over first year

OCXO

Temperature Stability +/- 0.05 ppm

Frequency Stability +/- 0.3 ppm over first year

Operating Voltage: 8V to 30 VDC

Size: 167 mm x 128 mm x 46 mm

Weight: 1.2 kg
