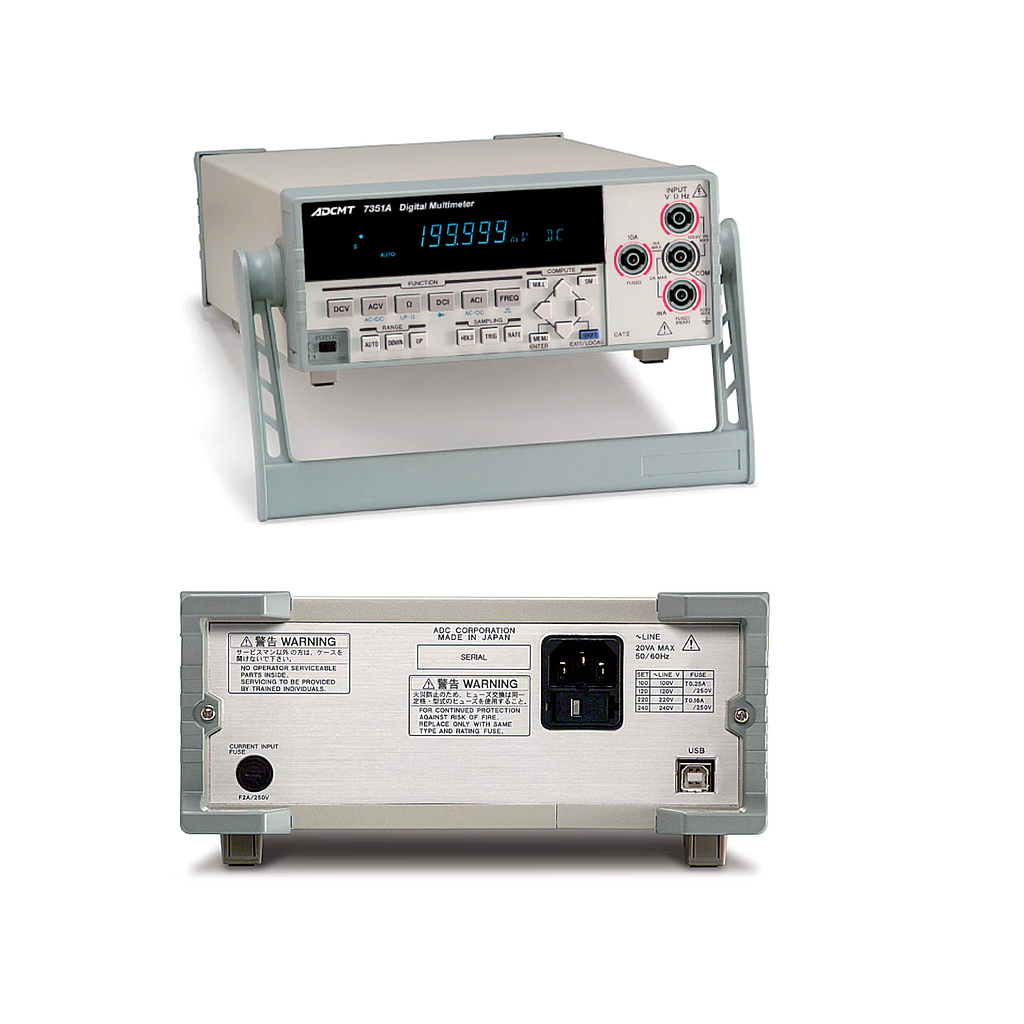

ADCMT 7351E 디지털 멀티미터 (5½-digit, 1μV~1000V, 1 μA~10A,True RMS)

Specifications:

Maximum display: 199 999

Measurement speed (readings/s): 140 max

DC voltage measurement: 1 μV to 1000 V

Accuracy (typical value): 0.011%/year

DC current measurement: 1 μA to 10 A

Resistance measurement: 1 mΩ to 200 MΩ

AC voltage measurement (True RMS): 1 μV to 700 V

AC voltage frequency range: 20 Hz to 100 kHz

AC current measurement (True RMS): 1 μA to 10 A

Calculation function: ✓

Data memory: 20,000 (software version E00 or later)

Lineup:

USB: ✓

GPIB: -

RS232: -

External trigger input: -

Complete output: -

Comparator output: -

Supplied Accessories:

Power cable (JIS 2 m): 1

Input cable (test probe 1 m): 1

Power fuse (100/120 V): 1

Power fuse (220/240 V): 1 *Either one is included.

Overcurrent protection fuse: 1
