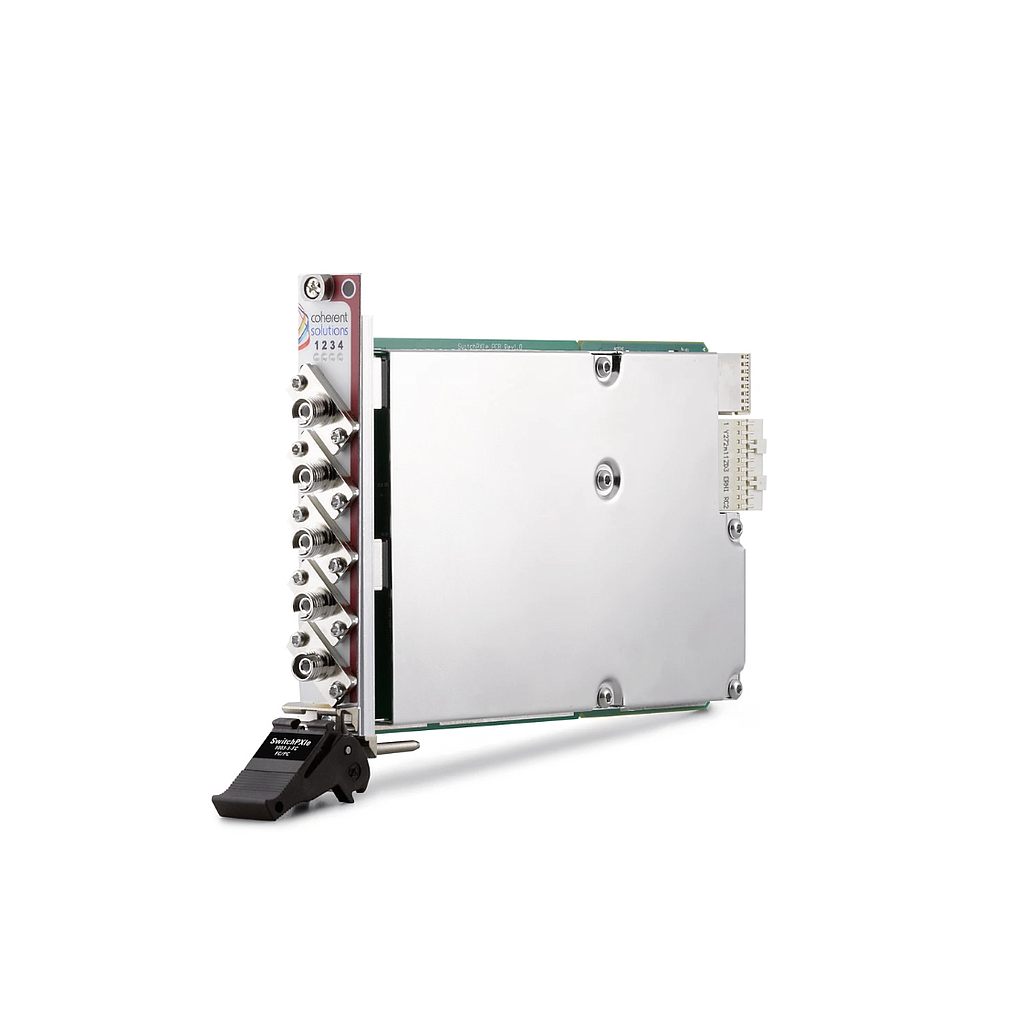

NI CohSol SwitchPXIe-1003-1 PXI Optical Switch (1x4 Switch, 1 ch, Singlemode, SA connector)
생산업체: NI Model: CohSol SwitchPXIe-1003-1 P/N: 786597-01 - 연락처
General
Bus Connector: PXIe
PXI slots
1001, 1003, 1004, 1101, 1103, 1105: 1 slot
1005, 1006, 1104, 1106: 2 slots
Dimensions (HxWxD)
130 mm x 20mm x 215 mm (5.1” x 0.8” x 8.5”)
130 mm x 40mm x 215 mm (5.1” x 1.6” x 8.5”)
Weight: ~ 1 kg (~2.2 lbs)
Operating temperature range: 5 °C to 45 °C (41 °F to 113 °F)
Storage temperature range: -40 °C to 70 °C (-40 °F to 158 °F)
>> 1003 SMF-28
1x4 Optical Switch: Minimum ; Typical ; Maximum
Wavelength range: 1260 nm to 1650 nm
Insertion loss: — ; 0.6 dB ; 0.8 dB
Return loss: 50 dB ; — ; —
Polarization dependent loss: — ; — ; < 0.1 dB
Wavelength dependent loss: — ; — ; 0.2 dB
Crosstalk: — ; — ; -50 dB
Repeatability: — ; — ; ±0.02 dB
Damage level: — ; — ; +27 dBm
Durability: 10^9 cycles ; — ; —
Switching time: — ; — ; 20ms
Optical connector type: FC/APC, FC/PC, SC/PC, SC/APC
Routes optical signals to simplify wiring in an optical test system.
The PXI Optical Switch is available in many different switching configurations for customized optical switching. It offers both single-mode and multimode fiber options that can support switching of very small wavelength signals. The switch provides either SC/PC, FC/PC, SC/APC, or FC/APC fiber-optic connectors. You can use the PXI Optical Switch for repeatable, low-loss switching.
Datasheet
