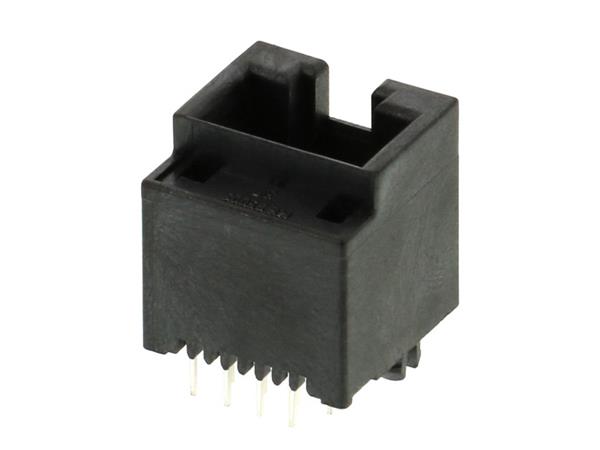

Modular VERT PCB 8/8 RJ45 SMALL PANEL CUTOUT Molex 95503-2881
Hãng sản xuất: Molex Model: 95503-2881 - Liên hệ
Gọi để có giá tốt
TP. Hà Nội: (024) 35.381.269
TP. Đà Nẵng: (023) 63.747.711
TP. Bắc Ninh: (0222)730.39.68
TP. HCM: (028) 38.119.636
Color: Black
Pitch: 1.02 mm
Gender: Jack (Female)
Shielding: Unshielded
USOC Codes: RJ45
Application: 10 Base-T
Unit Weight: 3 g
Configuration: 1x1
Tab Direction: Top Entry
Current Rating: 1.5 A
Mounting Angle: Vertical
Mounting Style: Through Hole
Voltage Rating: 125 VDC
Contact Plating: Gold
Number of Ports: 1 Port
Contact Material: Tin
Termination Style: Solder
Flammability Rating: UL 94 V-0
Number of Positions: 8 Position
Performance Category: Cat 3
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
Number of Positions / Contacts per Port: 8P8C
