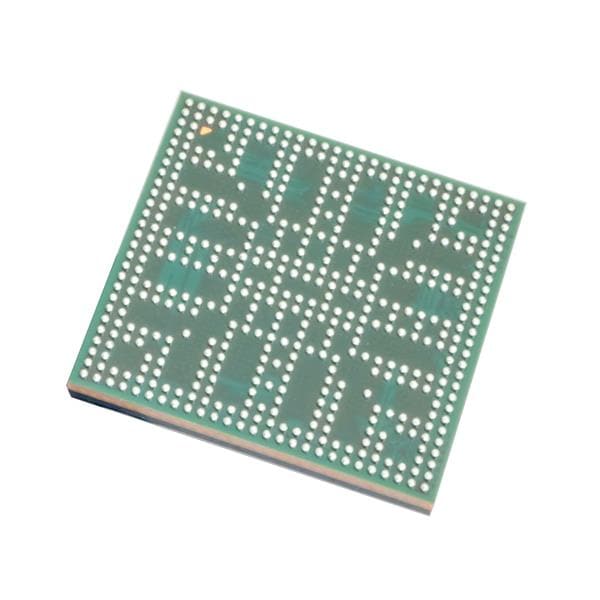

Processors - Application Specialized mScale 845S 14X14FCBGA NXP MIMX8MM4DVTLZAA
Hãng sản xuất: NXP Model: MIMX8MM4DVTLZAA - Liên hệ
Gọi để có giá tốt
TP. Hà Nội: (024) 35.381.269
TP. Đà Nẵng: (023) 63.747.711
TP. Bắc Ninh: (0222)730.39.68
TP. HCM: (028) 38.119.636
Core: ARM Cortex A53, ARM Cortex M4
Application: Consumer
Memory Type: DDR4, DDR3L, LPDDR4
Data RAM Size: 32 kB, 256 kB
Data ROM Size: 256 kB
Data Bus Width: 64 bit
Interface Type: Audio, Ethernet, PCI-e, Serial, USB
Mounting Style: SMD/SMT
Number of Cores: 3 Core
Watchdog Timers: Watchdog Timer
Instruction Type: Floating Point
Processor Series: i.MX 8M Mini Dual
Moisture Sensitive: Yes
L1 Cache Data Memory: 16 kB, 32 kB
Maximum Clock Frequency: 400 MHz, 1.8 GHz
Operating Supply Voltage: 1 V
Number of Timers/Counters: 6 Timer
L1 Cache Instruction Memory: 16 kB, 32 kB
Maximum Operating Temperature: + 95 C
Minimum Operating Temperature: 0 C
L2 Cache Instruction / Data Memory: 512 kB
